Finish: Silver, Gold

Cover & Arm finishes: SSS, PSS, PVD, AB
Heavy-duty adjustable door closer
The compact format in a timeless design
Simple, easy installation & guaranteed quality
Non-handed unit
Attractively priced solution with optimum reliability
Constant closing action virtually unaffected by temperature fluctuations, with adjustable latch action
Optimum wall and door protection, due to backcheck
Smooth door action thanks to high mechanical efficiency
Hold open arm available
Supplied with parallel arm bracket
Suitable for 120min fire-rated timber and 240min metal doors
Tested to Grade 8: 500,000 cycles.

Product specification

Power size (adjustable by spring)

EN2 (up to 850mm/45kg) Yes

EN3 (up to 950mm/60kg) Yes

EN4 (up to 1100mm/80kg) Yes

EN5 (up to 1250mm/110kg) Yes

Mechanism Rack and pinion

Adjustable closing speed Yes

Adjustable latch action Yes

Adjustable delayed action Optional

Adjustable backcheck Yes

Maximum door width (mm) 1250

Maximum door weight (kg) 110

The opening angle of 180°

Tested to BS EN 1154: 1997 Yes

CE marked Yes

DDA (min door width 728mm) Fig 1

DDA (min door width 835mm) Fig 66

LH and RH doors - universal application Yes

Fire-rated (BS EN 1634-1: 2000) Yes

Finish: Silver, Gold, SSS

M. M. Noorbhoy & Co (Pvt) Ltd. - Best Hardware Store in Sri Lanka

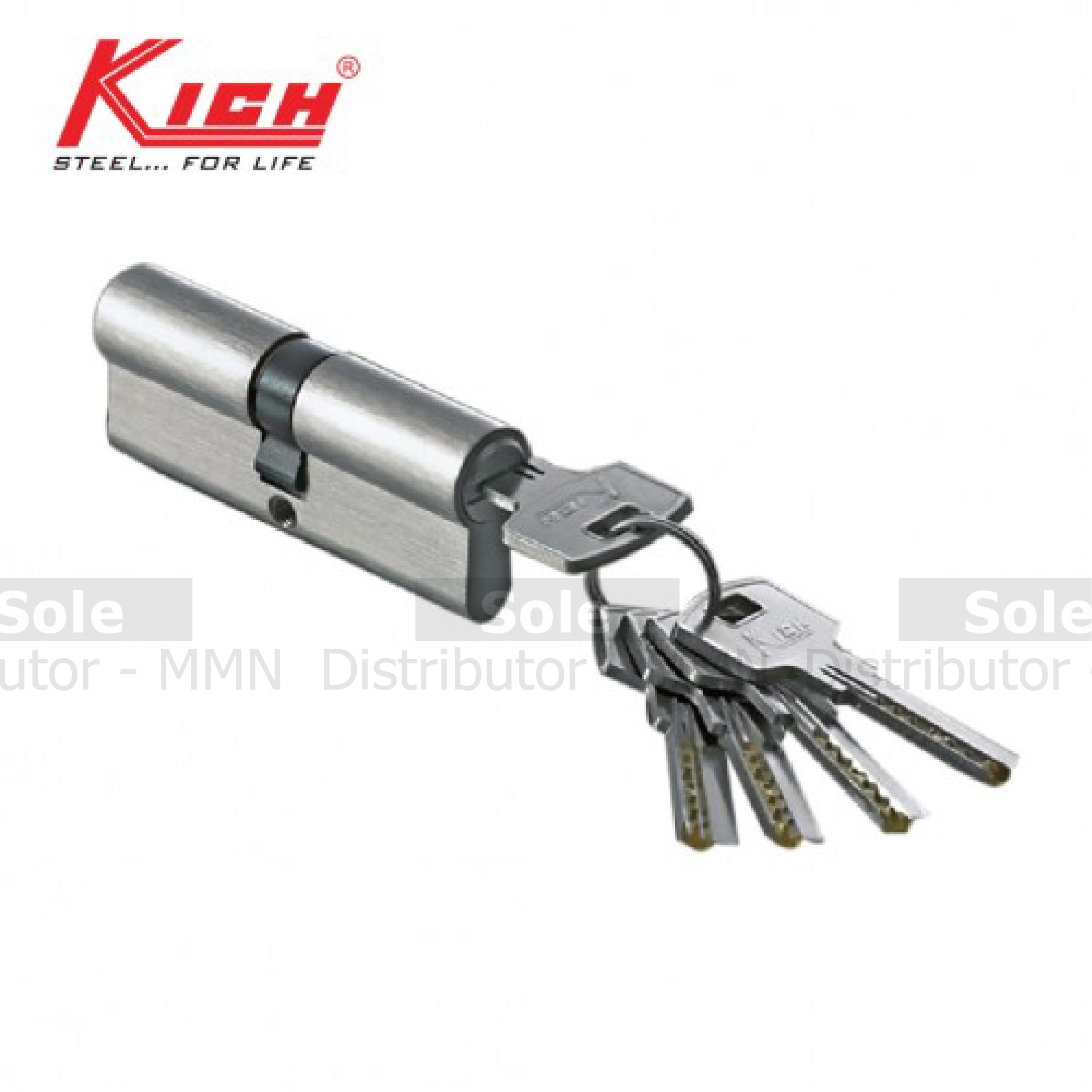

PIN CYLINDER (BOTH SIDE KEY) 60MM - K PC11KK 60 DSK SS
