Samet D-Lite Lift-Up Door Mechanism Power Unite C1 Grey - SM12407810003001

Only 3 left
SKU: SM12407810003001 Product Code: SM12407810003001
Regular price Rs 9,100.00 LKR inc. VAT
Product Weight
Dimensional Data Not Binding

Interested? Share on Social Media!

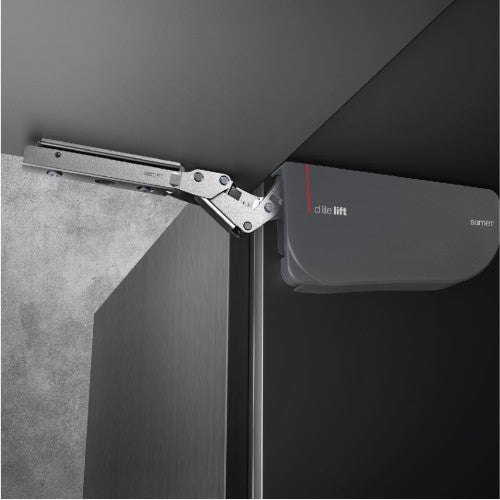

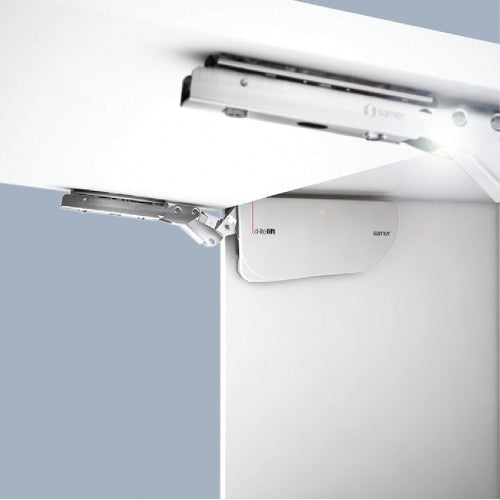

Soft and silent movement features of D-Lite Lift provide maximum comfort in lift-up cabinet doors. Cabinet doors can be stopped at the desired level by gradually opening feature. D- Lite Lift is designed and produced with the innovative perspective of Samet to cover minimum space in the cabinet. Four standard color options of D-Lite Lift complies with innovative furniture designs.

Inspirational Silence

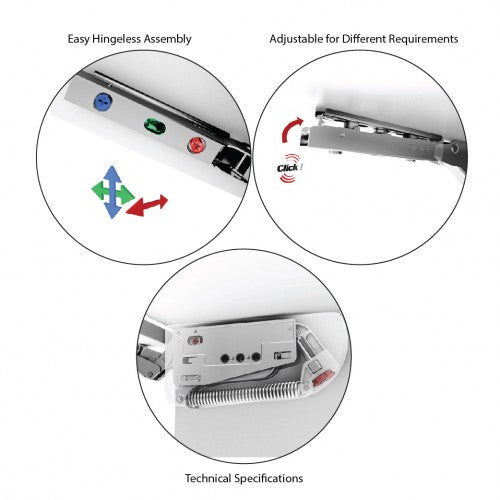

Easy Hingeless Assembly

D-Lite Lift’s impeccably designed mechanic lifting structure provides lifetime stability. D-Lite Lift can be assembled easily and also doors can be mounted without using any tools by a special track mechanism.

Adjustable for Different Requirements

D-Lite Lift’s 3-dimensional alignment mechanism which offers adjustment of up-down, left-right, back-forward for flawless installation. The lift-up force of the mechanism can be adjusted according to door weight and height. There are 3 different D-Lite Lift mechanism alternatives for different door weights which provides sleek solutions to designers in a wide range of door sizes.

Technical Specifications


    •          27 mm mechanism thickness
    •          90 mm mechanism height
    •          198 mm mechanism length
    •          14 kg of maximum loading capacity
    •          Easy tool-less assembly and disassembly with track mechanism
    •         107° and 90 ° opening angle options
    •          Fully mechanic lifting mechanism



ONLINE BROCHURE



INSTALLATION INFORMATION
