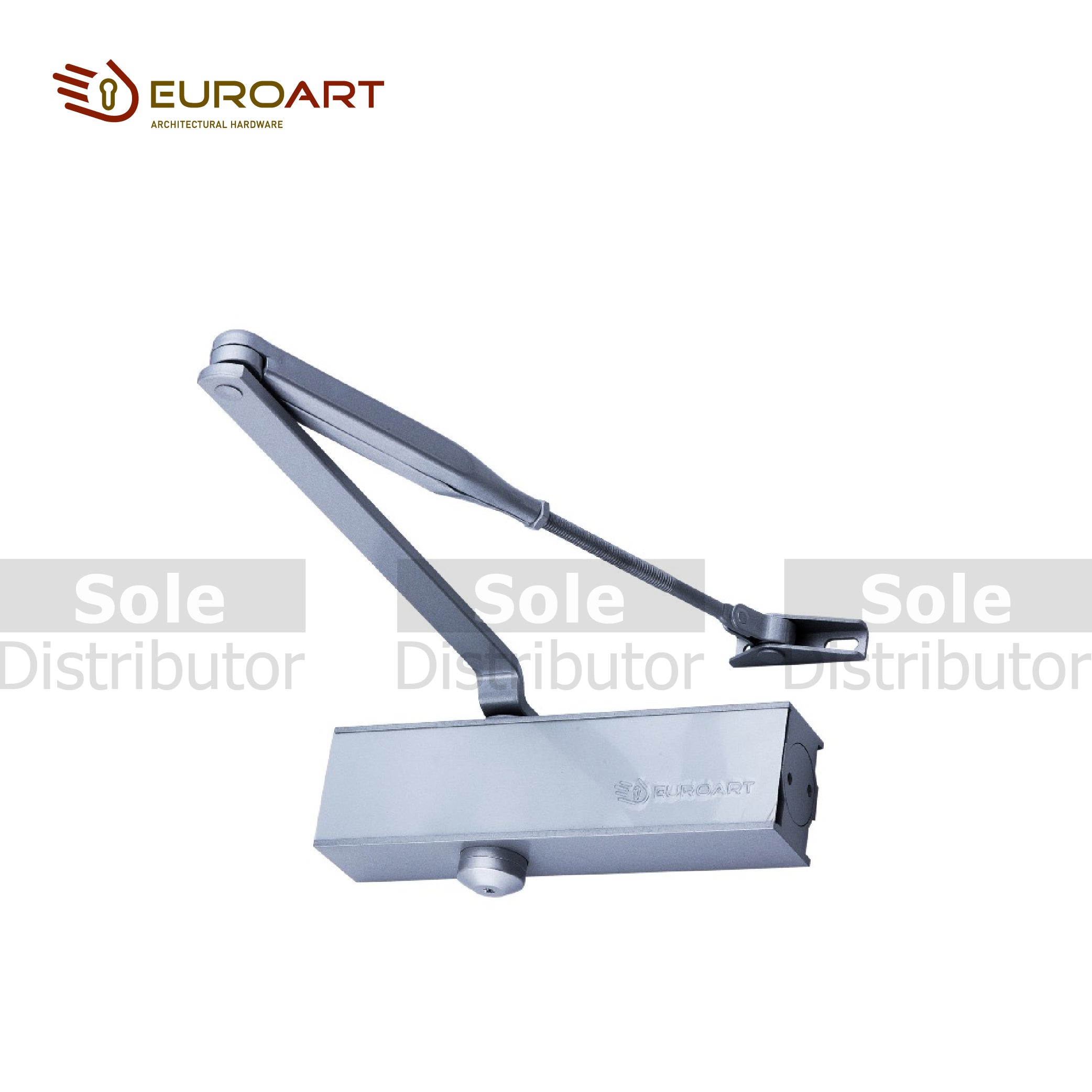

EuroArt Overhead Door Closer With BackCheck - DC6026BC

EuroArt Overhead Door Closer With BackCheck - DC6026BC

Regular price Rs 59,140.00 LKR
Regular price Sale price Rs 59,140.00 LKR
Sale Sold out
Tax included.
Style

Heavy Duty Standard Arm Closer

Features

  • Cover & Arm finishes: SSS, PSS, PVD, AB
  • Heavy-duty adjustable door closer
  • The compact format in a timeless design
  • Simple, easy installation & guaranteed quality
  • Non-handed unit
  • Attractively priced solution with optimum reliability
  • Constant closing action virtually unaffected by temperature fluctuations, with adjustable latch action
  • Optimum wall and door protection, due to backcheck
  • Smooth door action, thanks to high mechanical efficiency
  • Hold open arm available
  • Supplied with parallel arm bracket
  • Suitable for 120min fire-rated timber and 240min metal doors
  • Tested to Grade 8: 500,000 cycles.
Product specification
Power size (adjustable by spring)
EN2 (up to 850mm/45kg) Yes
EN3 (up to 950mm/60kg) Yes
EN4 (up to 1100mm/80kg) Yes
EN5 (up to 1250mm/110kg) Yes
EN6 (up to 1400mm/140kg) Yes
Mechanism Rack and pinion
Adjustable closing speed Yes
Adjustable latch action Yes
Adjustable delayed action Optional
Adjustable backcheck Yes
Maximum door width (mm) 1400
Maximum door weight (kg) 140
Opening angle 180
Tested to BS EN 1154: 1997 Yes
CE marked Yes
DDA (min door width 728mm) Fig 1
DDA (min door width 835mm) Fig 66
LH and RH doors - universal application Yes
Fire-rated (BS EN 1634-1: 2000) Yes

CATALOG
