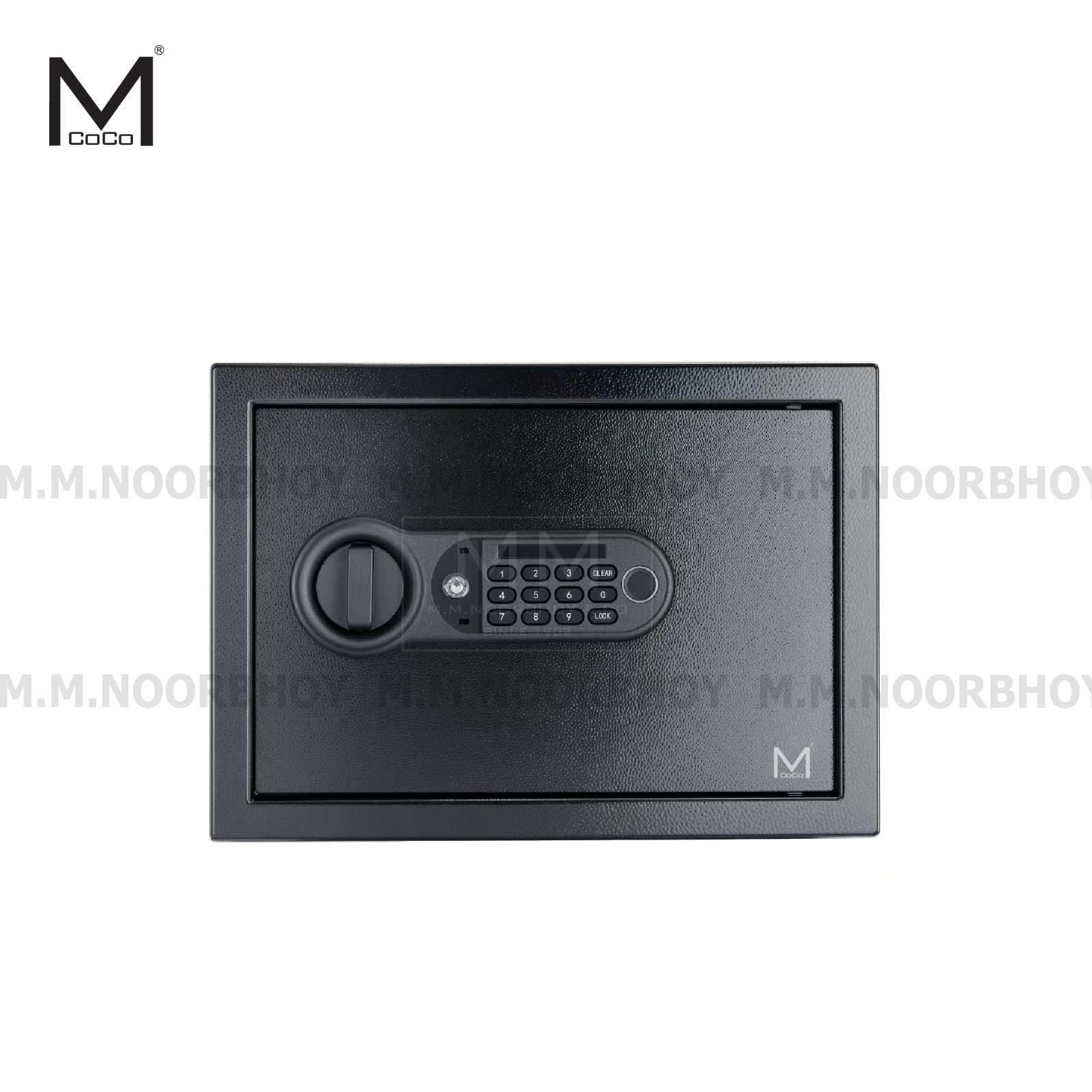

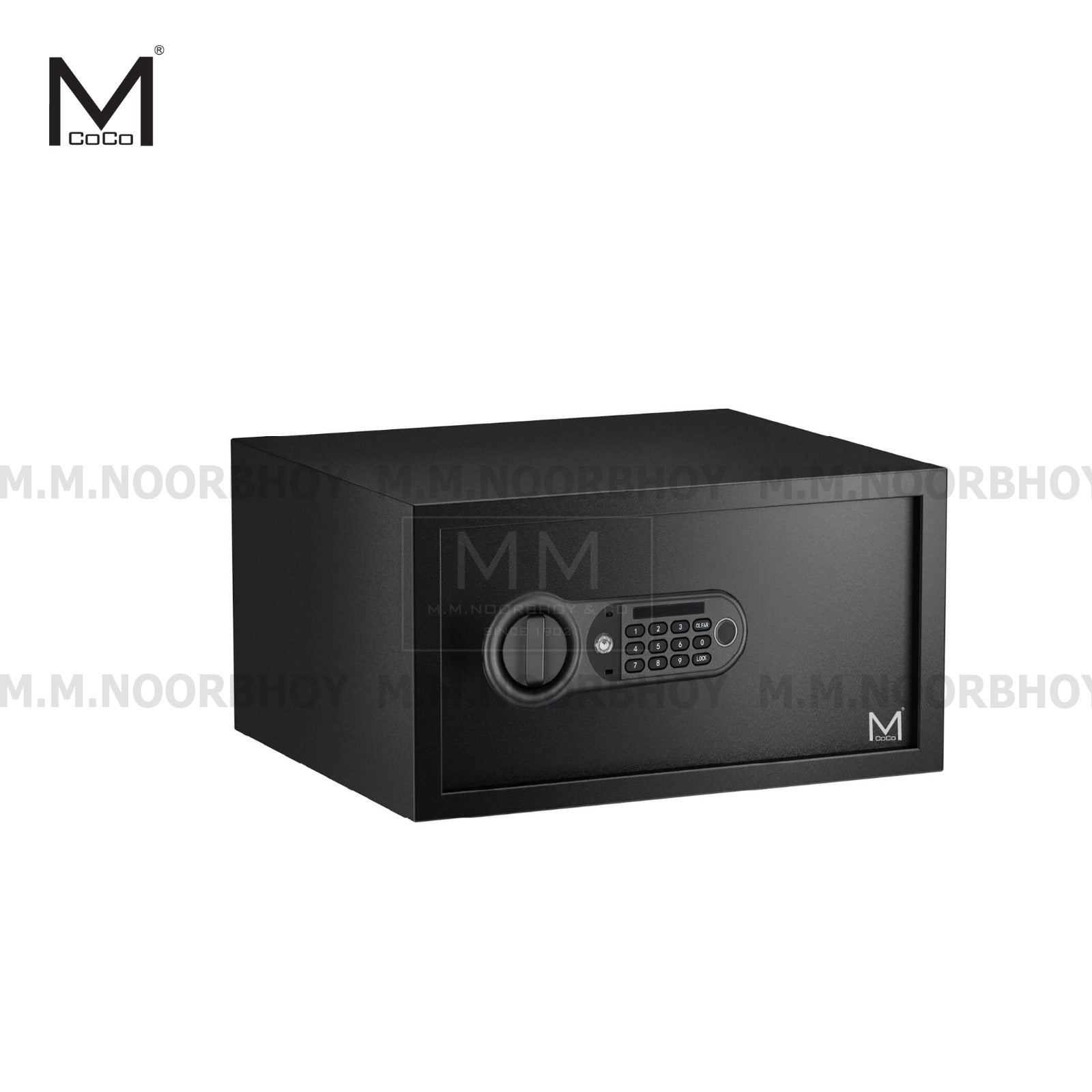

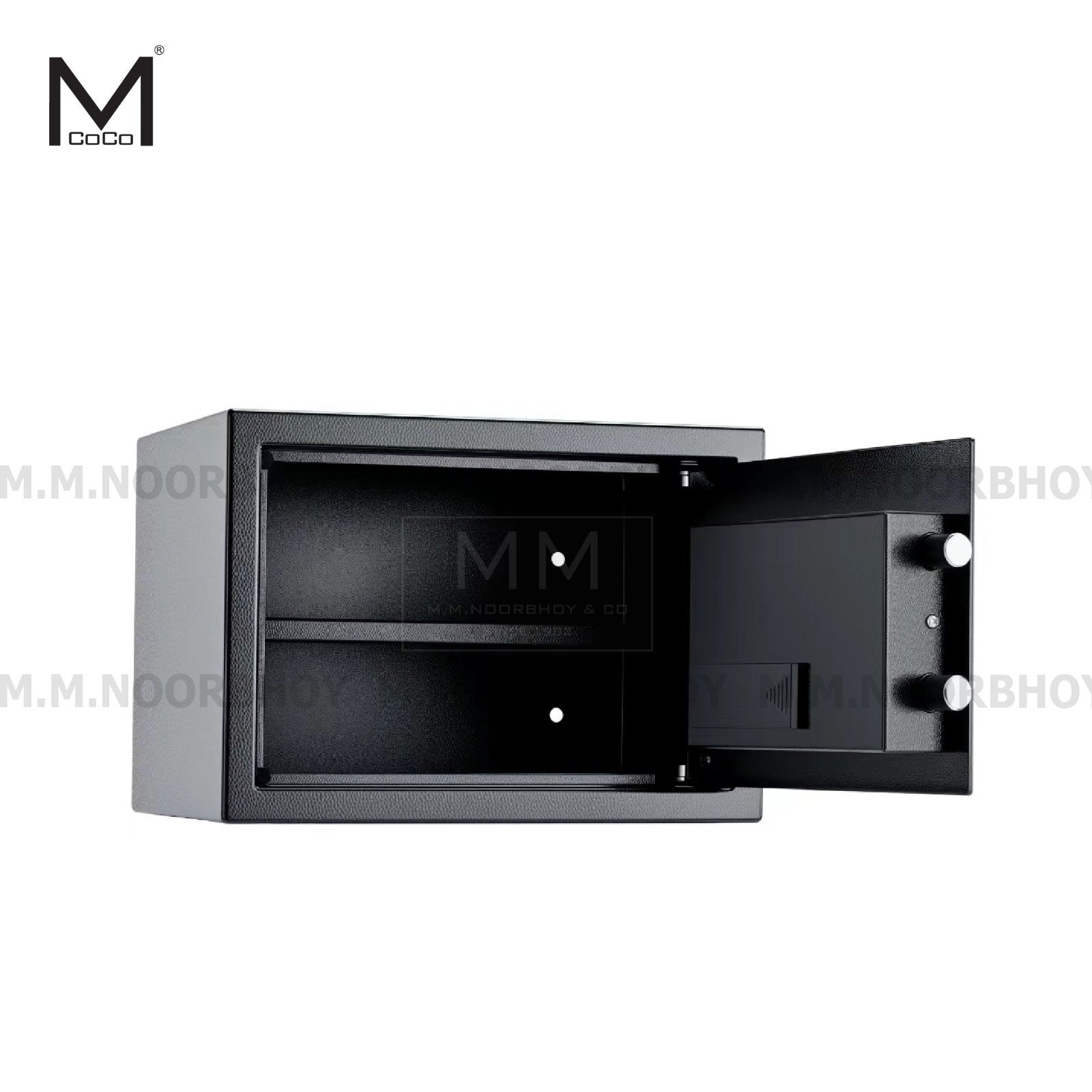

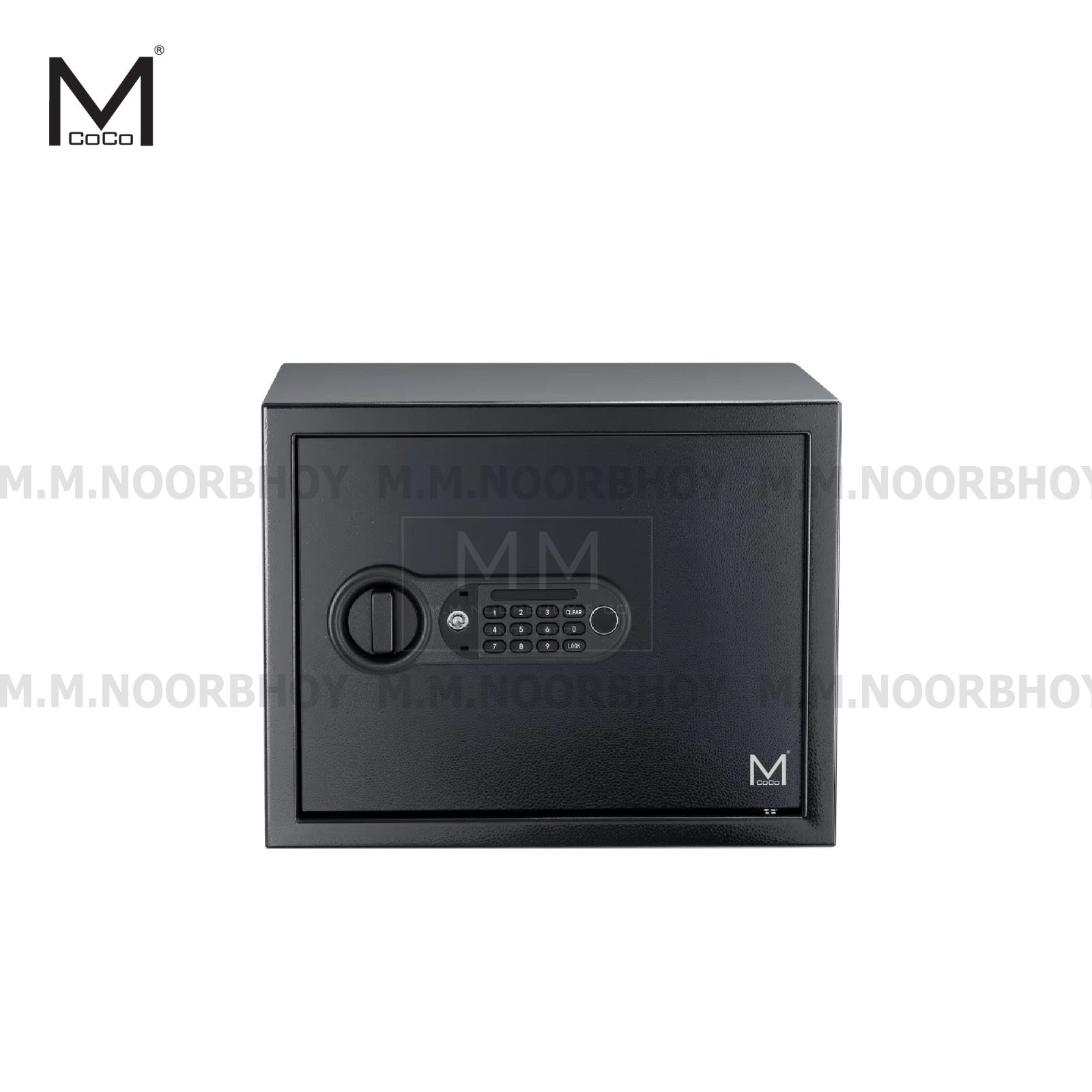

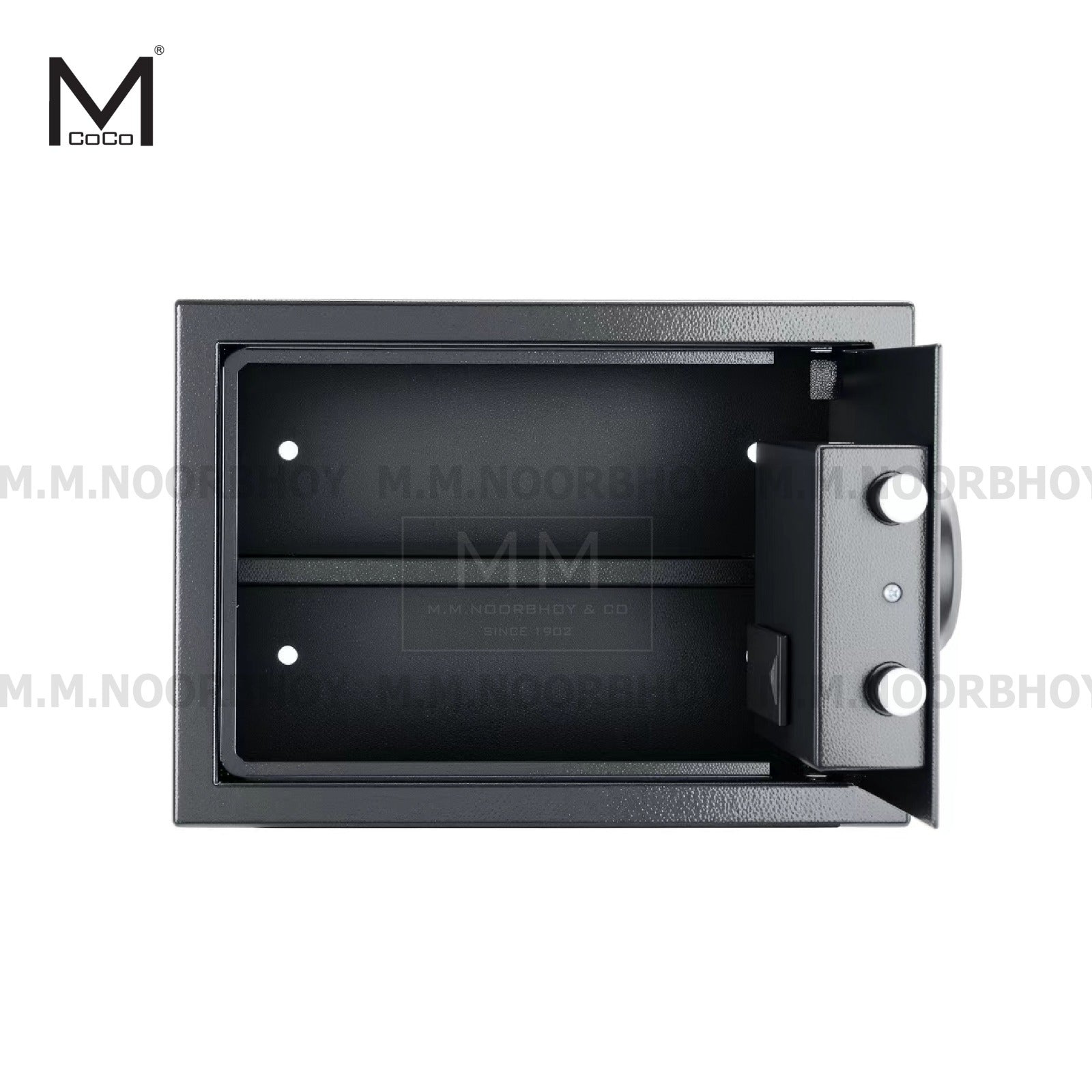

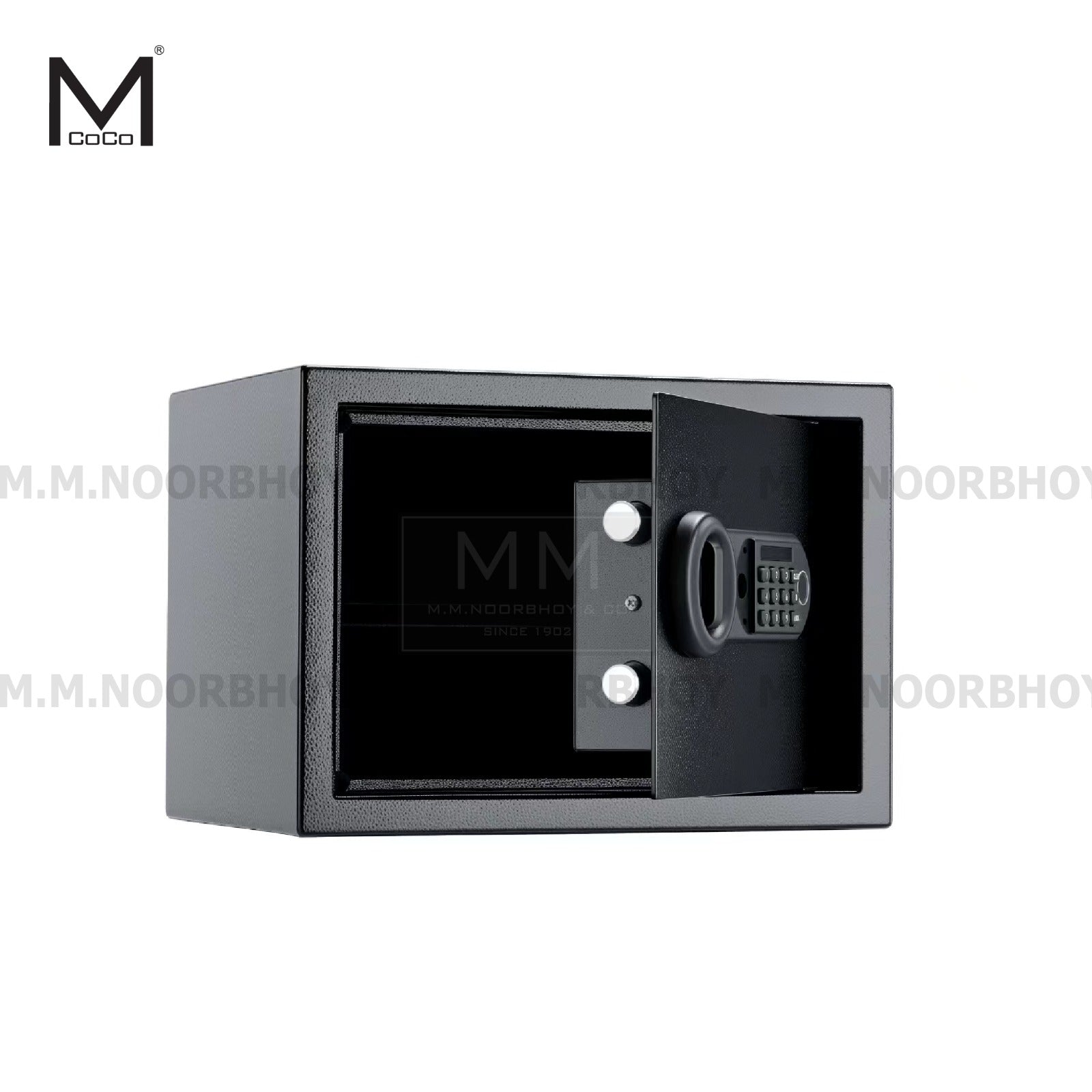

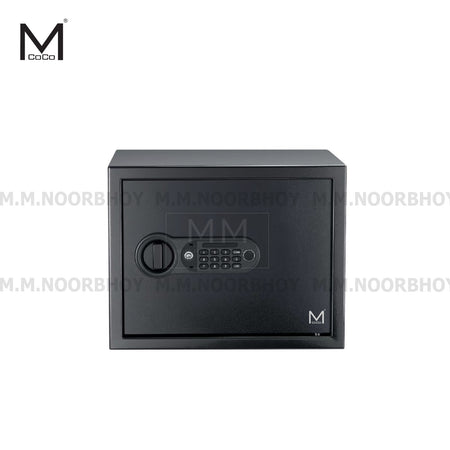

Mcoco Safe with Password, Fingerprint and Key Alloy Material Black Finish - MCO/SAFE/BLK/ZE30

In stock
SKU: MCO/SAFE/BLK/ZE20 Product Code: MCO/SAFE/BLK/ZE20
Regular price Rs 15,700.00 LKR inc. VAT
Product Weight
Size
Dimensional Data Not Binding

Safe Code and Sizes

Code Sizes (LXWXH)
MCO/SAFE/BLK/ZE20 32X22.5X21.5 CM
MCO/SAFE/BLK/ZE30 39.5X32.5X31.5 CM
MCO/SAFE/BLK/FP340 43.5X39.5X21.5 CM

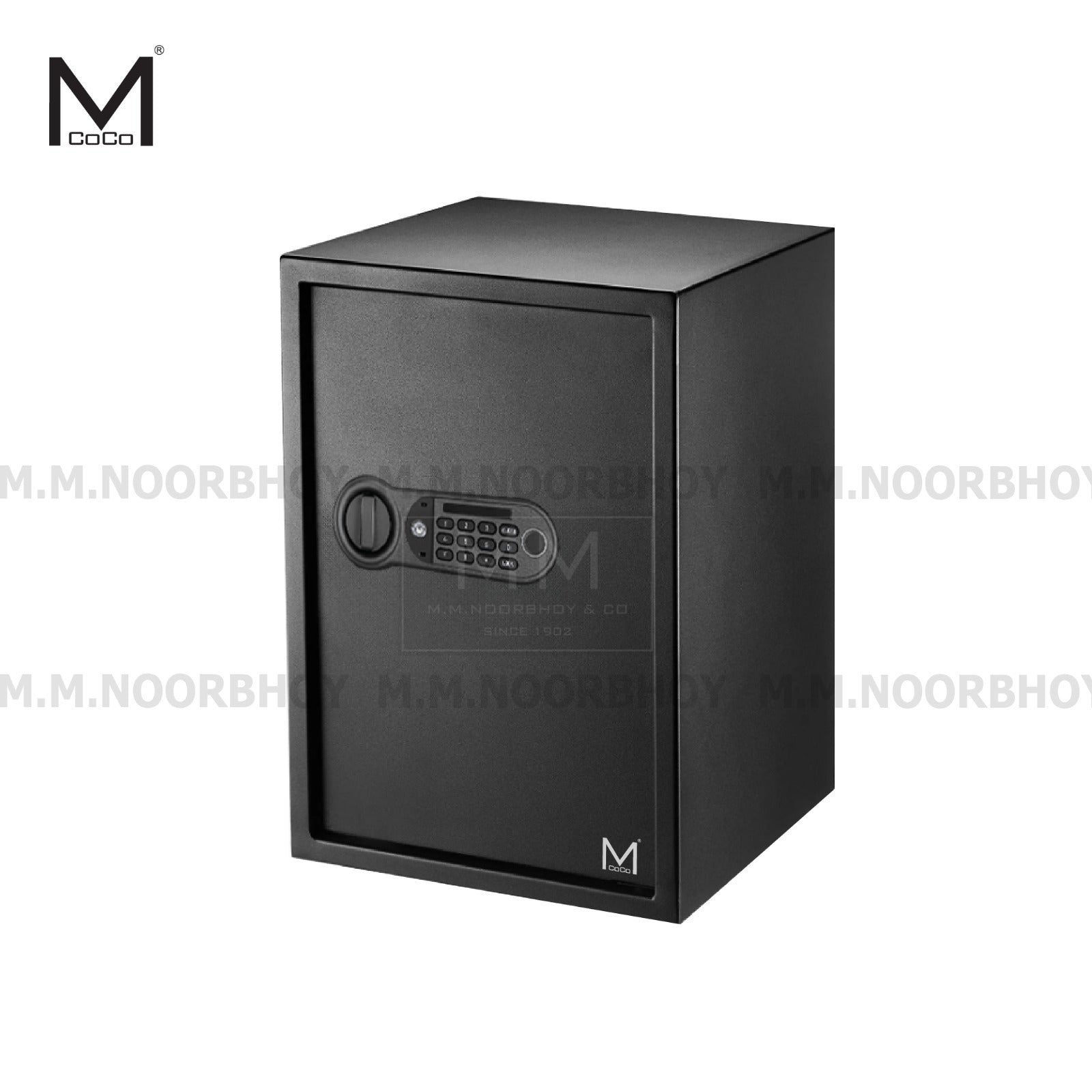

MCO/SAFE/BLK/ZE50 36.5X32.5X51.5 CM




🔐 Fingerprint Keypad Operation Manual

📌 Product Features

  1. Default Password: 1234
  2. No fingerprint is registered by default.
    (Unregistered/"blank" fingerprints cannot open the door.)
  3. IMPORTANT: Before first use, it is strongly recommended to:
    • Register your fingerprint.
    • Change the default password.

1. 🔓 Unlocking the Safe

Using Password:

  • Enter the correct user password and press the # key (e.g., 1234#).
  • You will hear two beeps, the green light turns on, and the electromagnet activates for 6 seconds.
  • You can now open the door.

Using Fingerprint:

  • Place a registered finger on the sensor.
  • The green light will turn on and the electromagnet will activate for 6 seconds.
  • You can now open the door.

Note: Unregistered fingerprints will not work. Fingerprints must be successfully registered.


2. 🔧 Setting a New Password

  1. Press the SET button once. The yellow light will turn on.
  2. Enter a new password (3–8 digits), then press the # key.
  3. You will hear two beeps and the green light will flash twice, confirming successful password change.

3. 🆕 Registering Fingerprints (Max: 100 fingerprints)

  1. Press the SET button once. The fingerprint sensor will emit a white light.
  2. Place the same finger on the sensor four consecutive times.
  3. On the fourth scan, if the green light turns on and you hear two beeps, the fingerprint is registered successfully.

Note: If registration fails, the sensor will flash red.


4. 🔁 Restore to Factory Settings

  1. Press and hold the SET button for 3 seconds until you hear a long beep.
  2. The green LED and fingerprint sensor will light up, indicating the system has been reset.

Default password restored to: 1234
All registered fingerprints are deleted.


5. 🔇 Enable / Disable Sound (Silent Mode)

Enable Silent Mode:

  • Press and hold the 3 key for 3 seconds.
  • The green light will flash twice – Silent Mode Activated.

Restore Sound:

  • Option 1: Press and hold the 3 key for 3 seconds again. You'll hear a double beep and the green light will flash twice – Sound On.
  • Option 2: Power off and power on the device – sound is enabled by default.

6. 🔒 System Lock Function

Triggered when:

  • Wrong password entered 3 times in a row
  • Wrong fingerprint used 5 times in a row

Result:

  • The buzzer will sound for 20 seconds
  • The system will lock for 20 seconds
  • No operations are accepted during this time.

7. 💡 Interior Lighting Function

  • After successfully unlocking with password or fingerprint, the interior light turns on and stays on for 30 seconds.

8. 🔋 Low Battery Warning

  • If both green and red LEDs light up and the buzzer sounds 5 times after unlocking:
    • This indicates low battery.
    • Please replace the batteries promptly.

9. 🧭 Single / Double Unlock Mode

Single Mode Unlock:

  • Press the 1 key, release it, then press the SET (register) button once.
  • A long beep confirms Single Mode is activated (unlock via password or fingerprint).

Double Mode Unlock:

  • Press the 2 key, release it, then press the SET (register) button once.
  • A long beep confirms Double Mode is activated (requires both password and fingerprint).

⚙️ Product Specifications

Specification

Value

Operating Voltage

4.5–6V

Low Voltage Threshold

4.8V (±0.2V)

Working Current

380mA (±20%)

Standby Current

25μA (±20%)


Common Fingerprint Issues & Solutions

📌 Issue 1: Fingerprint Registration Fails

  • Cause: The Finger did not fully touch the sensor or pressure was too light.
  • Solution: Apply gentle, even pressure during registration. Ensure the finger fully contacts the sensor surface.

📌 Issue 2: Fingerprint Recognition Fails for Elderly/Children/Dry Skin

  • Solution: Register the same finger 2–3 times to improve accuracy and recognition.
