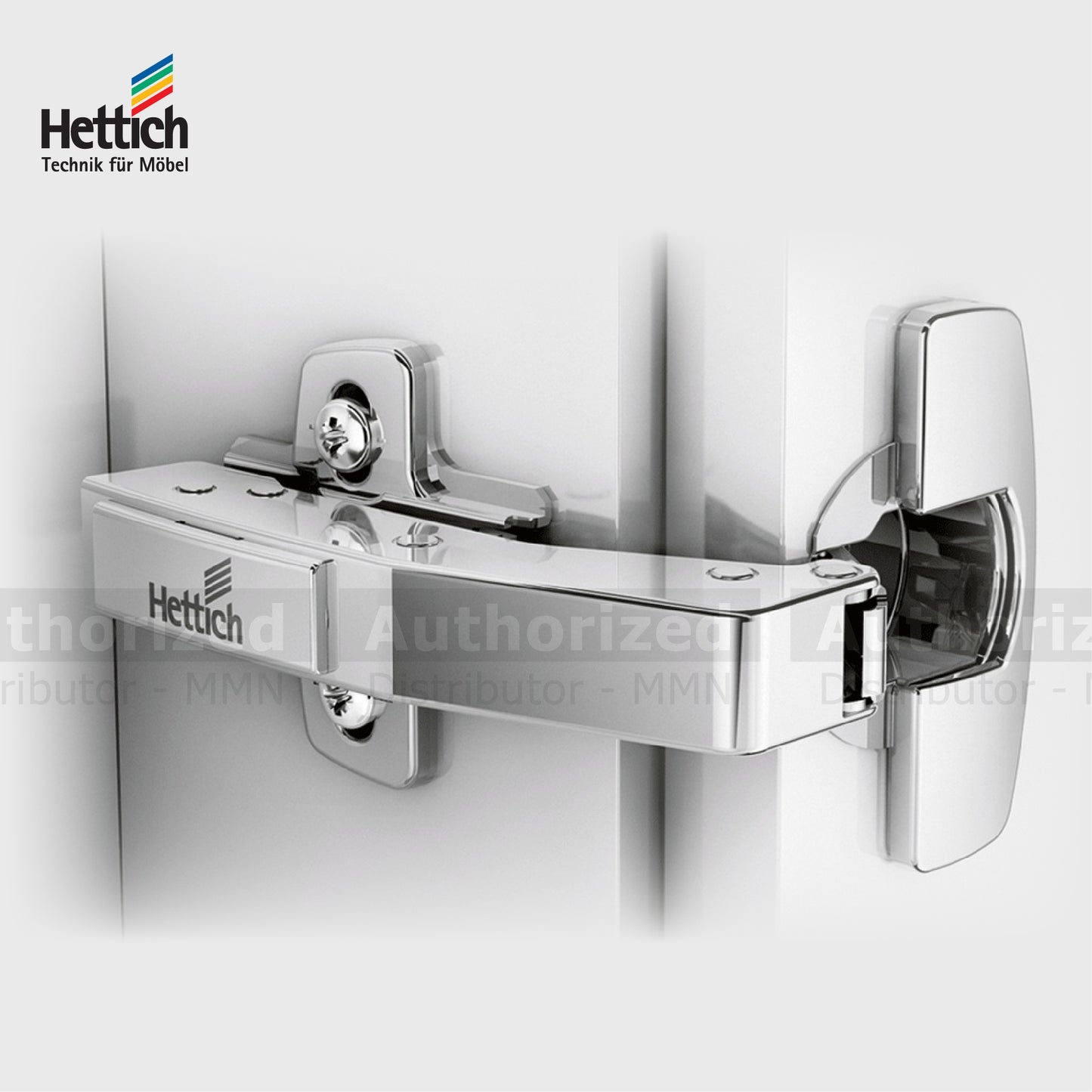

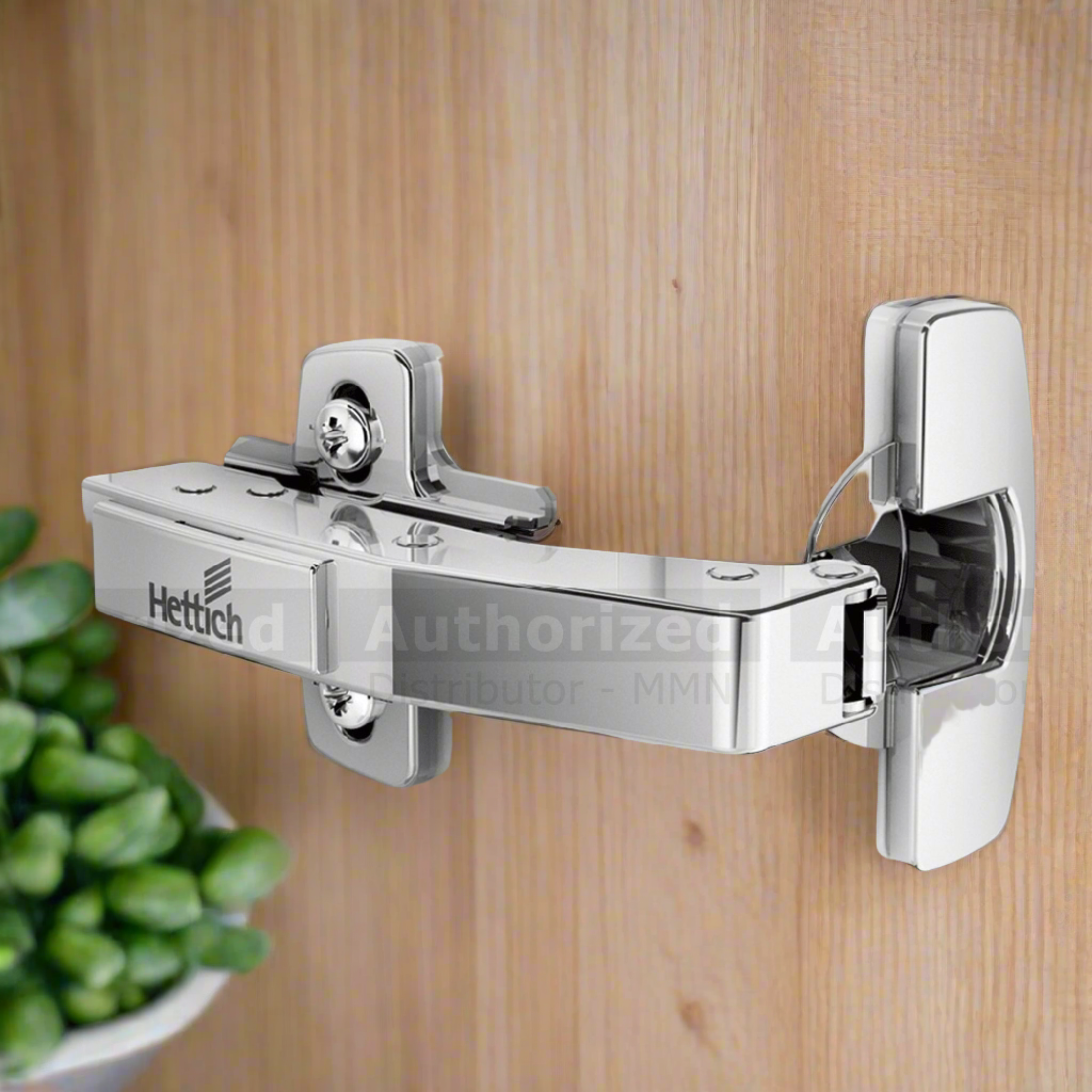

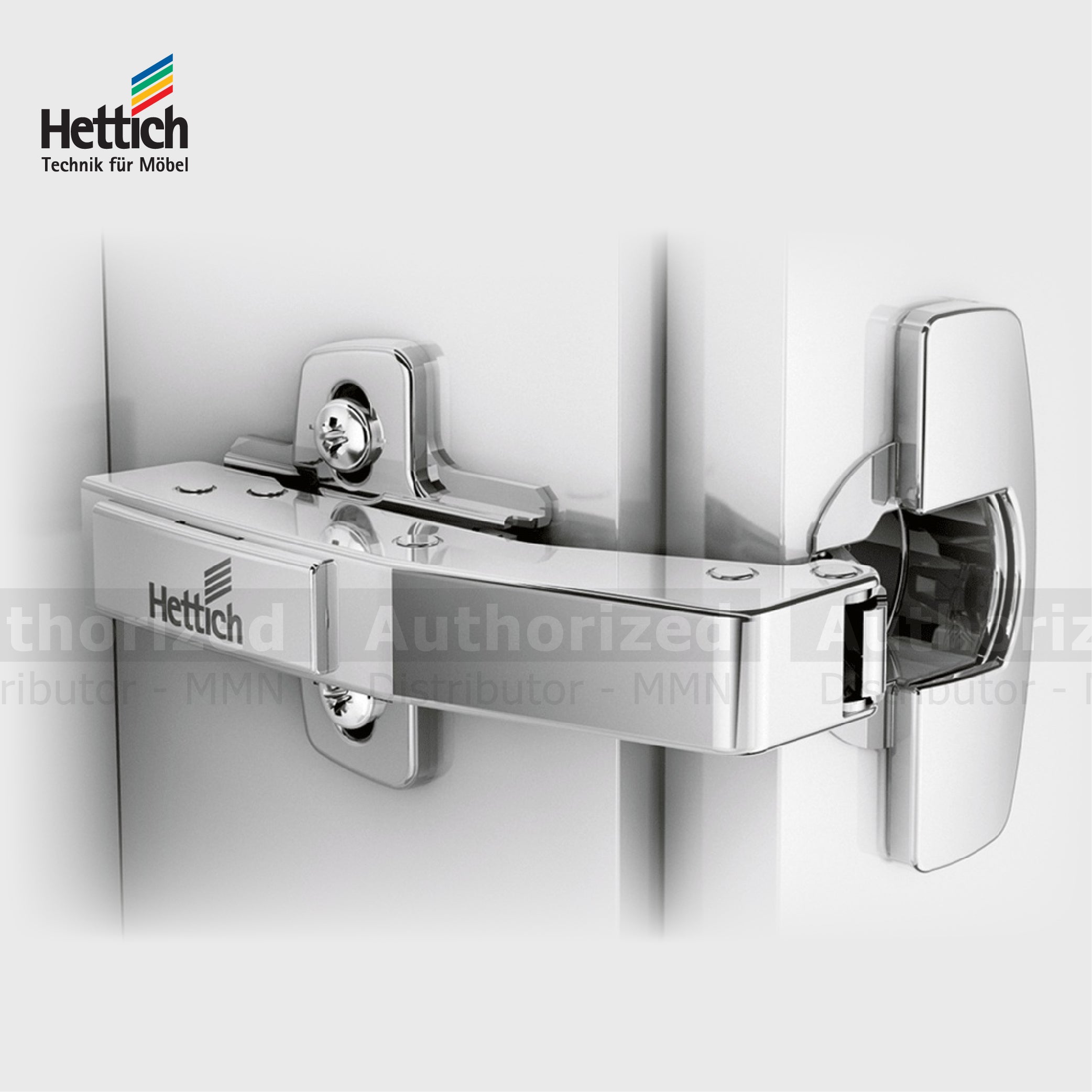

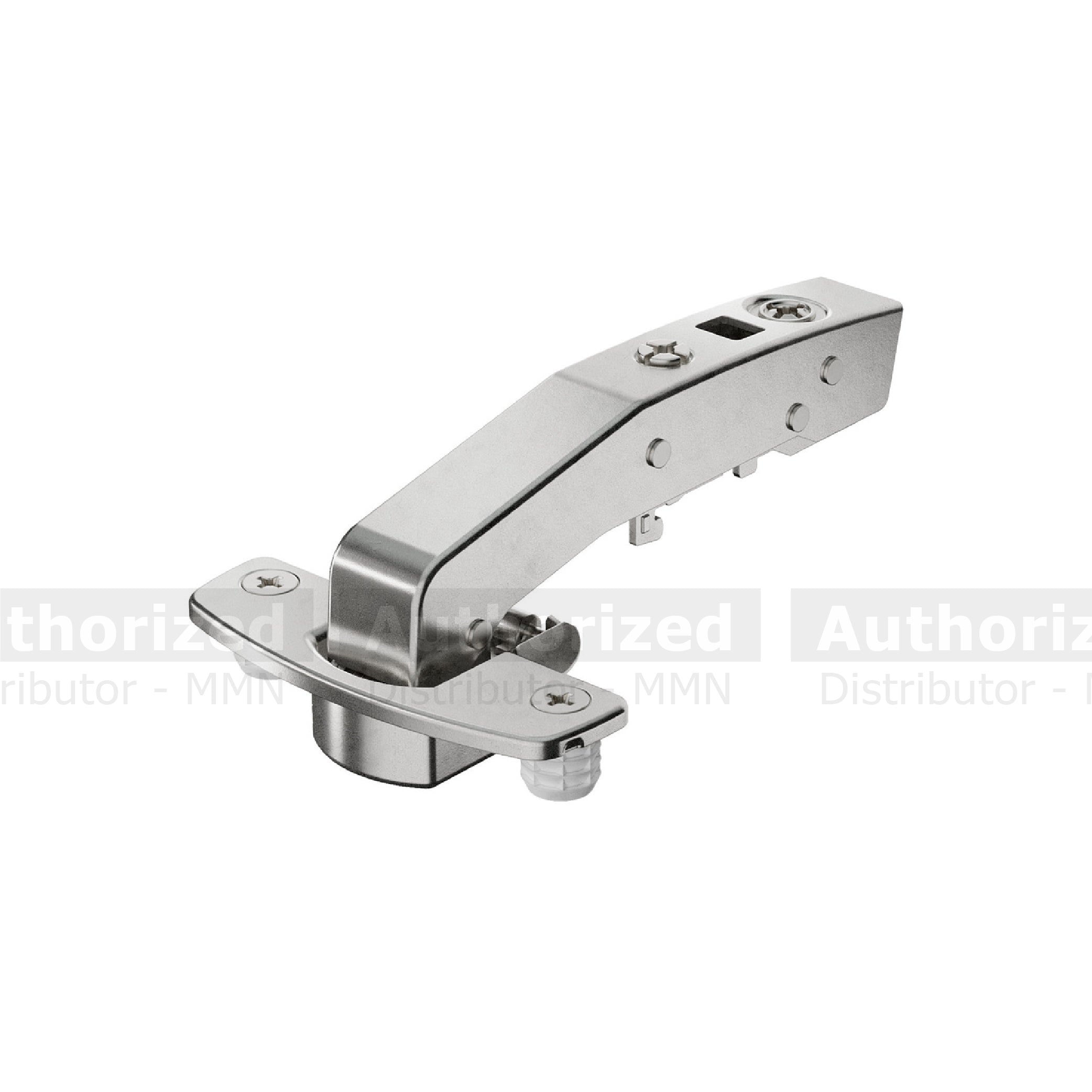

Hettich Sensys 8639i W90 Blind Corner Hinge Opening Angle 90° Steel Nickel Plated- HT9243043

HT9243043 - Hettich Sensys 8639i W90 Blind Corner Hinge - TH52 for 90° Face Angle Application; Opening angle 95° - Pair

• Sensys angle hinge W90
• With integrated Silent System, with self closing feature (Sensys 8639i W90)
• Quality classification under EN 15570, Level 3
• Opening angle 95°
• For door thickness 15 - 28 mm

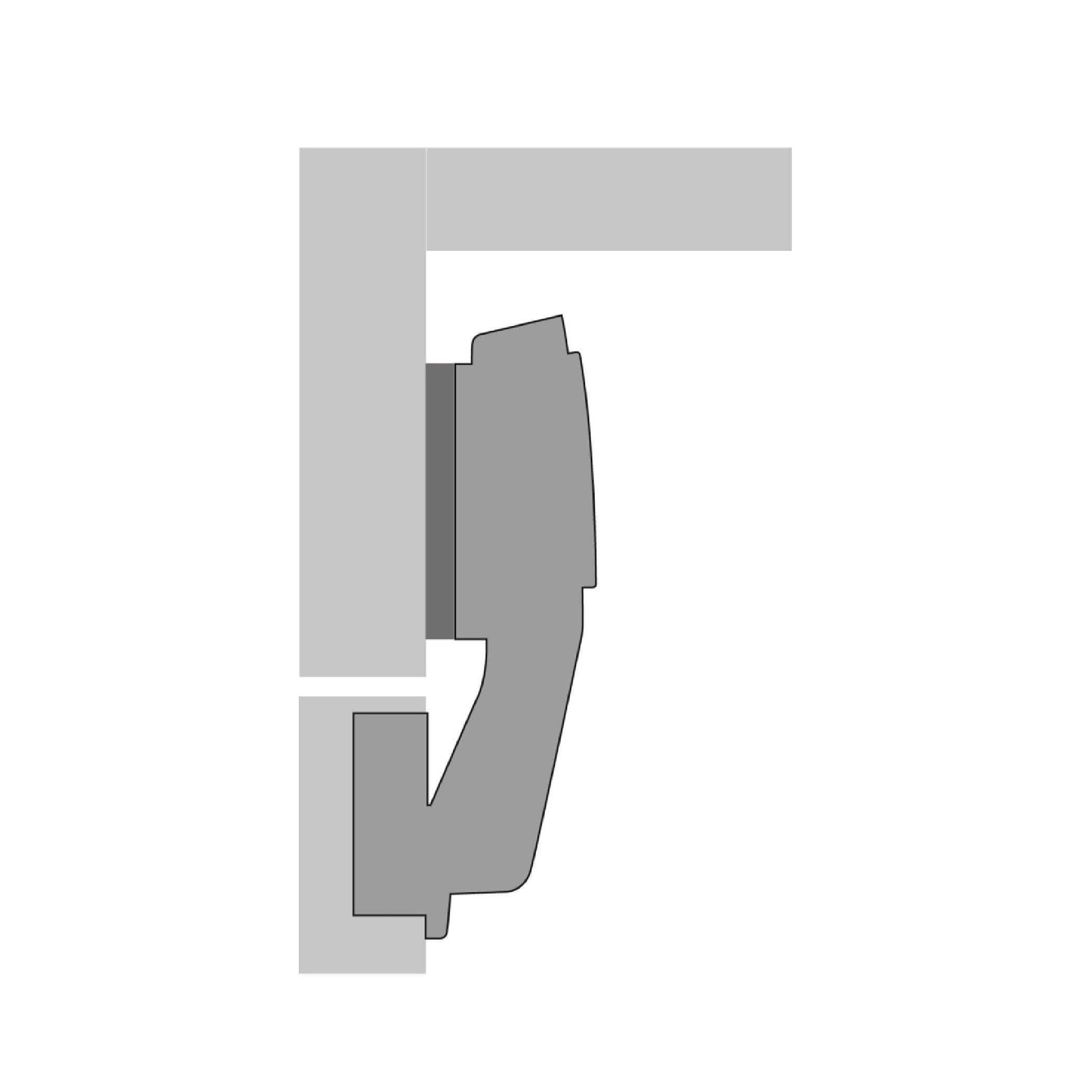

• Door mounting option inset

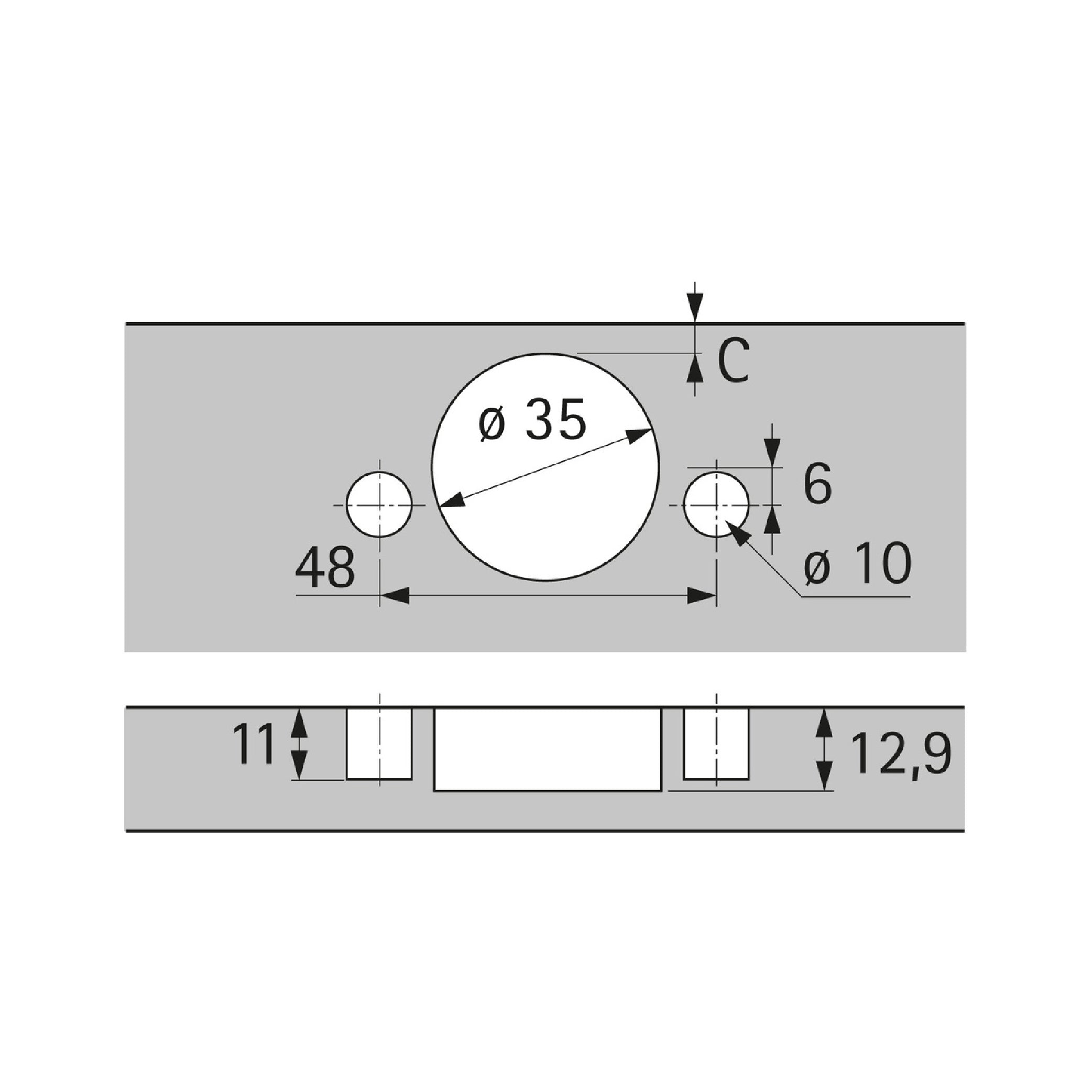

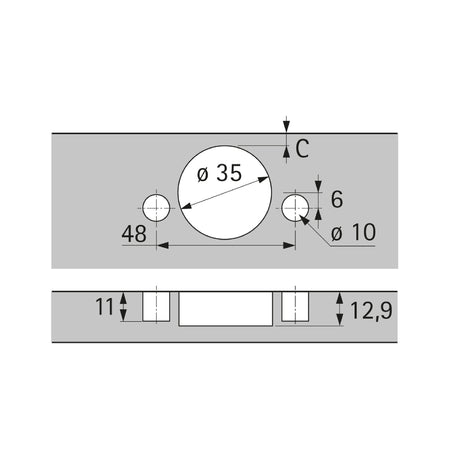

• Drilling pattern TS 48 x 6 mm
• Cup depth 12.8 mm
• Installation for pressing in
• Integrated adjustment of door offset +1 mm / -2 mm
• Integrated reveal adjustment +3 mm / -2 mm
• Height adjustment at mounting plate
• steel nickel plated
