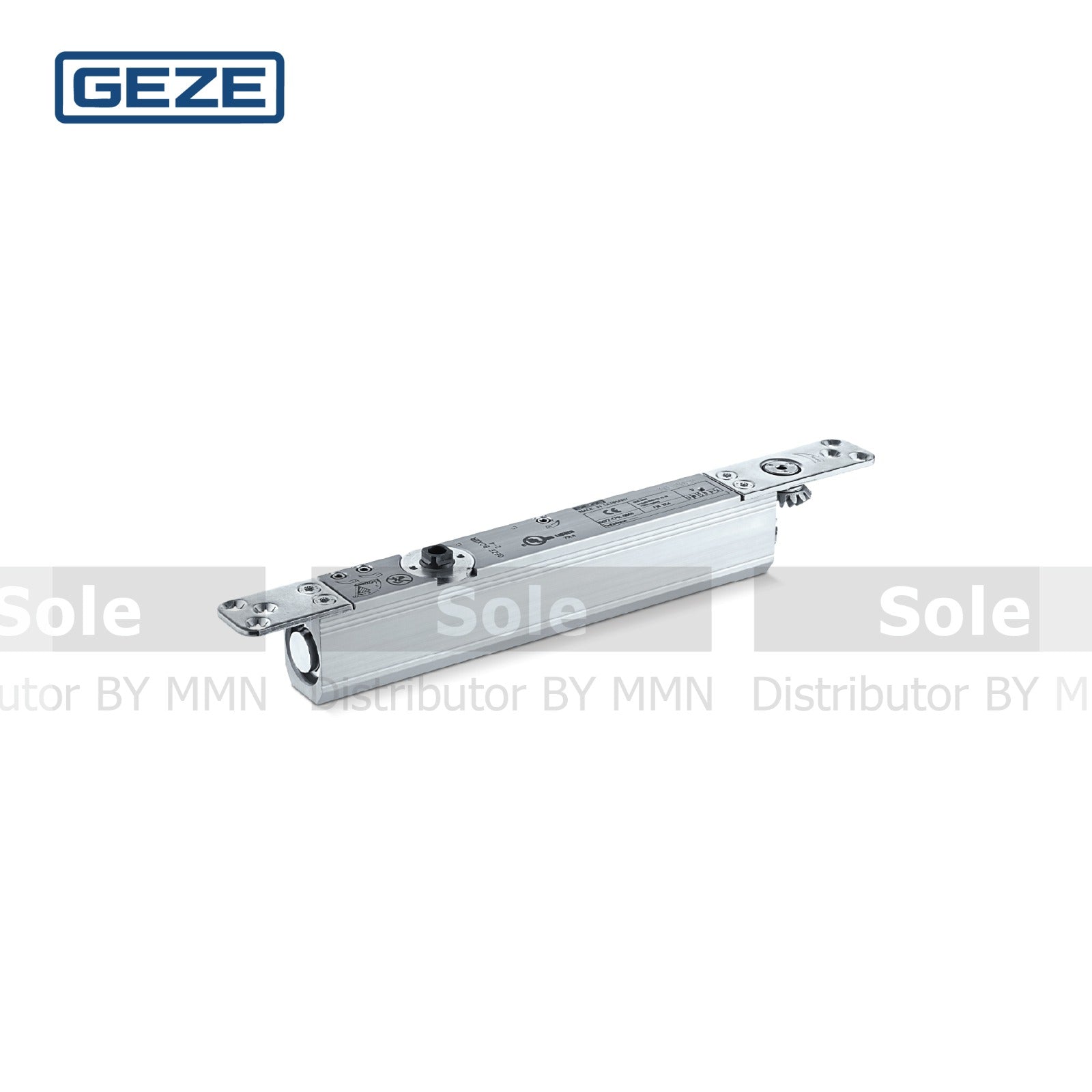

Geze Integrated Cam Action Door Closer with Hold Open Slide Arm Closing Force - GEZE/DC/SIL/1510007
Regular price
Rs 90,199.20 LKR
inc. VAT
Product Weight
Couldn't load pickup availability
Dimensional Data Not Binding
About this item
- All functions can be adjusted in the installed state
- Top-adjustable closing force with variable adjustment
- Closing speed can be adjusted from the top via valves
- Latching action/smooth latching function can be adjusted from the front via valve
- Back check can be adjusted from the top via the valve
- Door closer, can be used for right and left hand doors
- Spindle extensions up to 8 mm available
- Minimal installation effort due to low number of individual parts and quick setting
Application Areas
- Fire and smoke protection doors, proof of suitability for the door required
- Right and left single-action doors
- Single-action doors up to 1100 mm leaf width, for door weight up to 120 kg
- For door leaf thicknesses from 40 mm
- Integrated installation
Technical data
| Closing force in accordance with EN 1154 | EN 2 - 4 |
|---|---|
| Leaf width (max.) | 1100 mm |
| Leaf weight (max.) | 130 kg |
| Opening angle (max.) | 120 ° |
| Identical design for DIN left and DIN right | Yes |
| Standard conformity | EN 1154:1996/A1:2002/AC:2006 |
| Suitability for fire protection doors | Yes |
| Length | 286 mm |
| Width | 32 mm |
| Height | 45 mm |
| Closing force adjustable | Yes, stepless |
| Adjustable closing speed | Yes |
| Latching action adjustable | Yes, via valve |
| Latching action speed, adjustable | Yes |
| Back check integrated | Yes, hydraulically adjustable |
| Position of closing force adjustment | Top |
| Safety valve againts overload | Yes |
