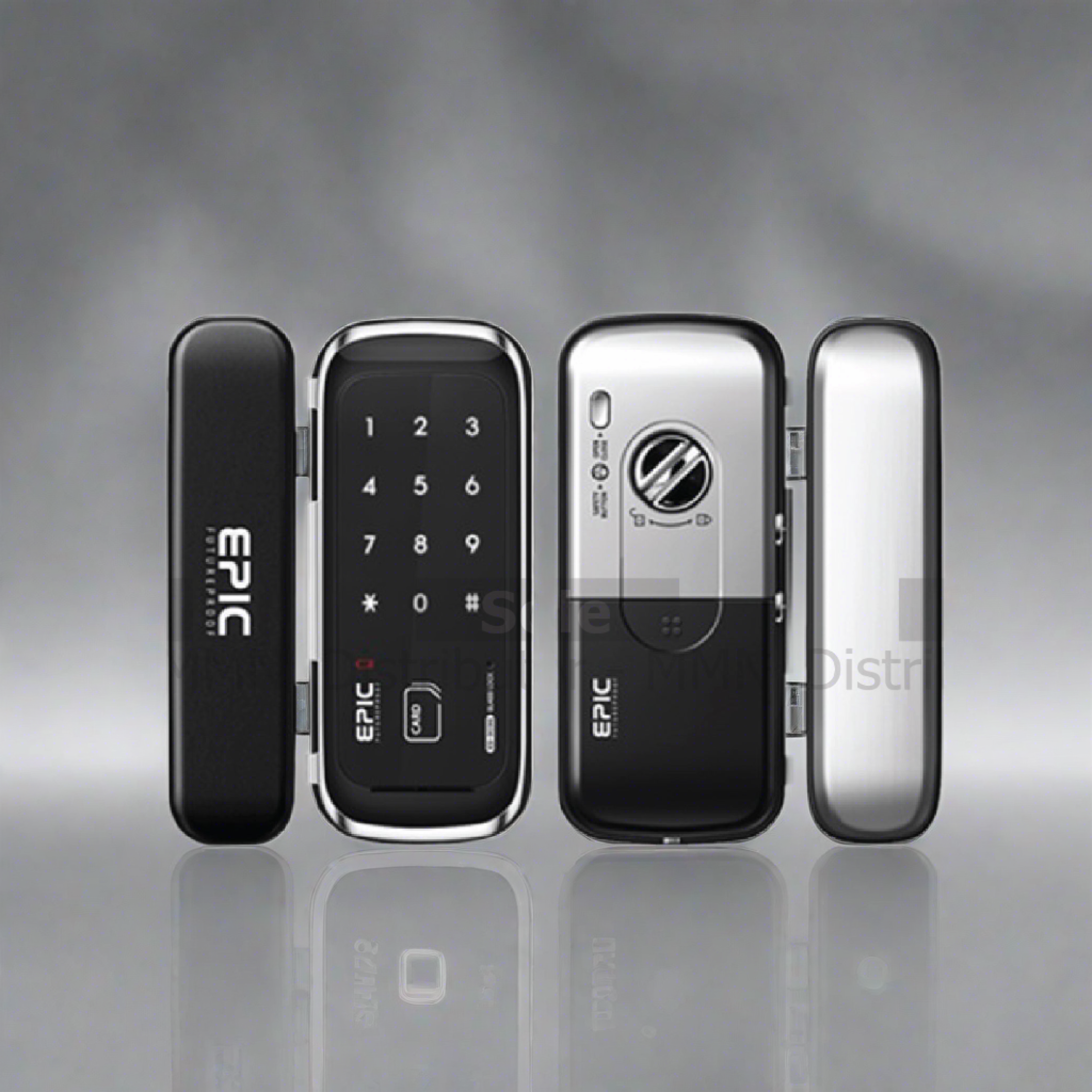

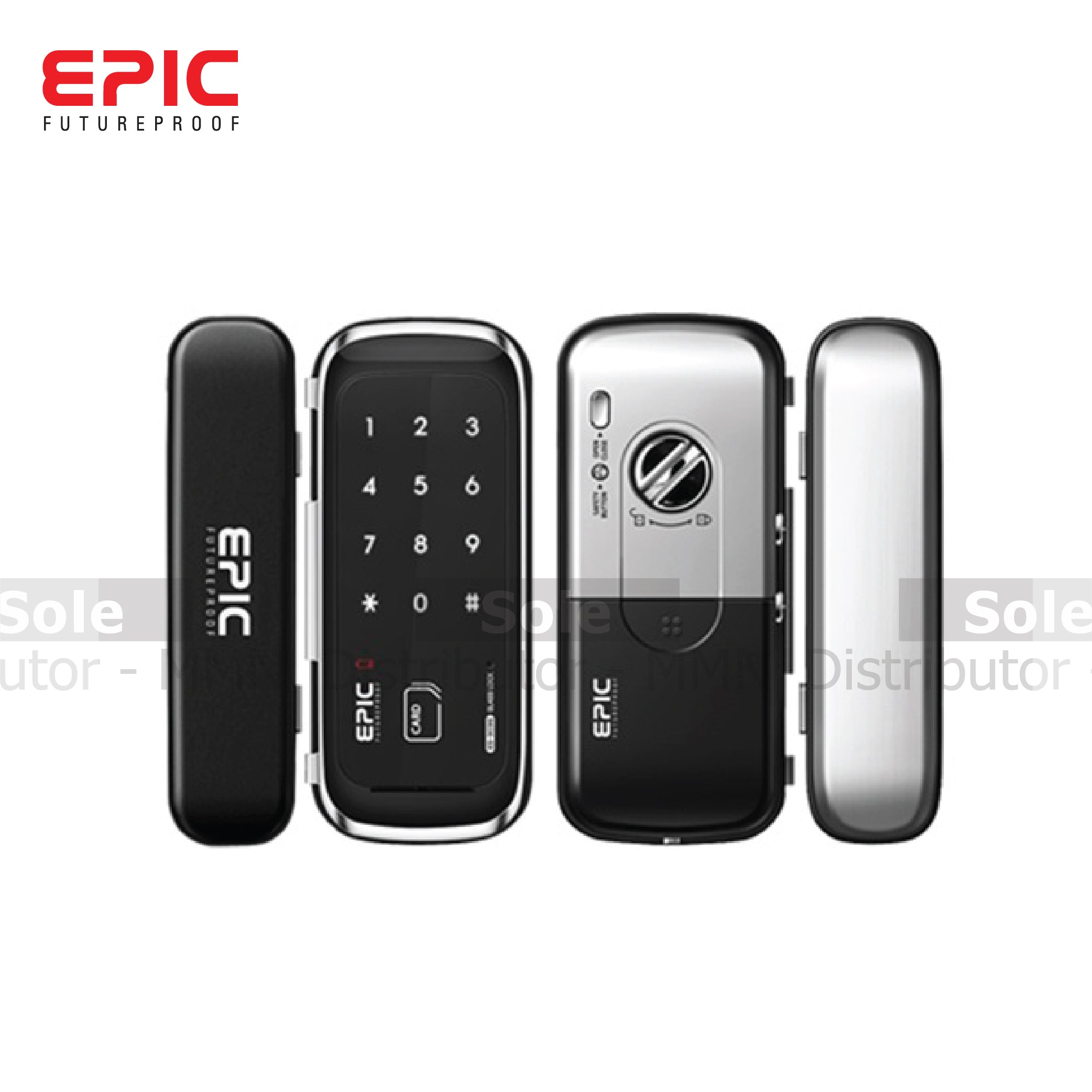

Epic Digital Rim Lock For Glass Door With 2 Way Options Pin Number + RFID Card - ES-303G

FEATURES

• Left & Right Hand Automatic Recognition Feature

• Normal Pin & Guest Pin Number

• Pin & RFID Card Authentication

• Pin & RFID Card Individual Registration

• Pin & RFID Card All-at-once Registration

• Pin & RFID Card Individual Delete

• Pin & RFID Card All-at-once Delete

• Dual-Mode Security Feature

• Internal Force Lock Feature

• Multi-Touch Feature

• Random Number Feature

• Automatic Lock Setting

• Manual Lock Setting

• Fire Alarm

• Anti-Hacking Alarm

• Anti-Prank Alarm

• 1 Minute Lock

• Deadbolt Error Alarm

• Low Battery Alarm

• Emergency Battery

• Volume Setting

• Mute Setting

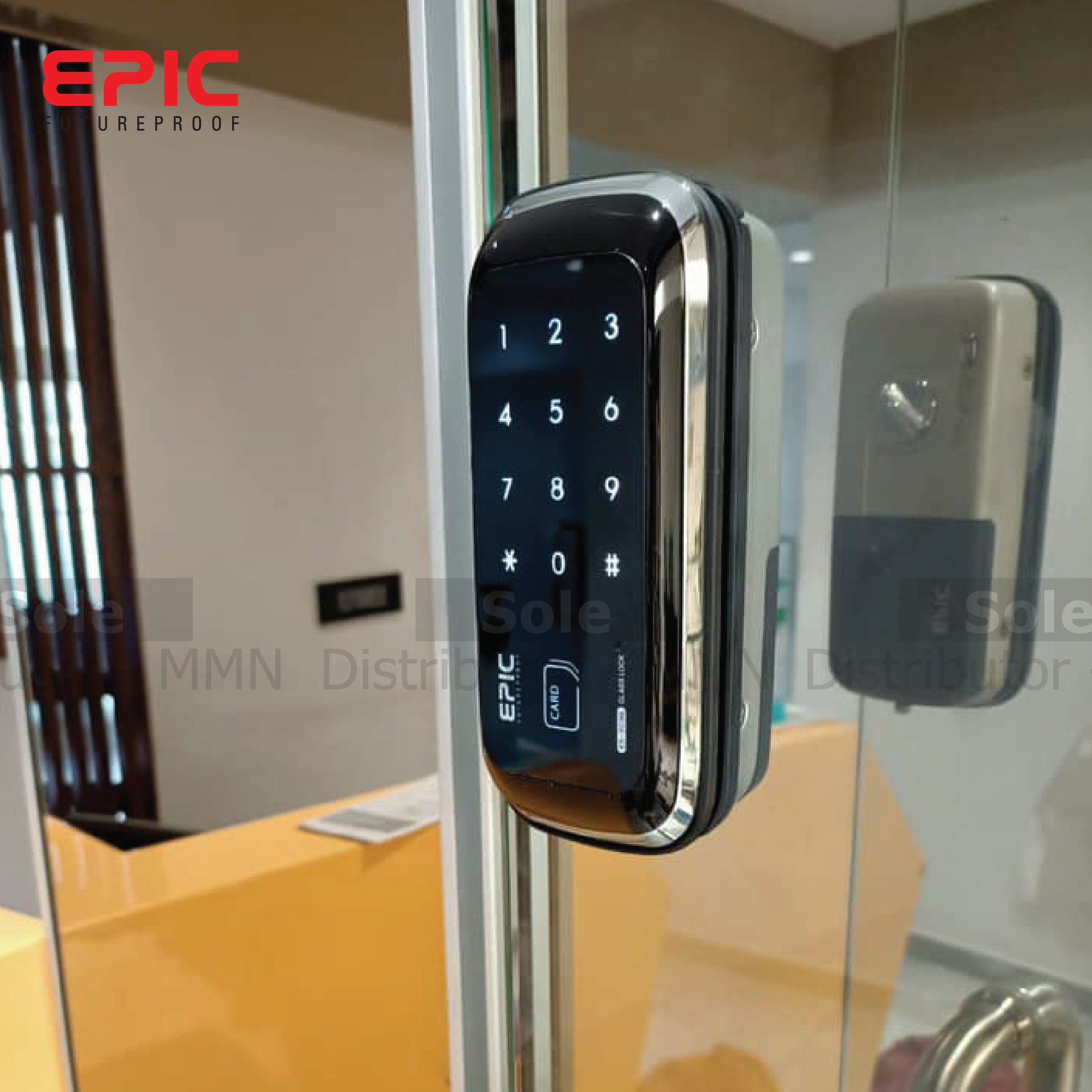

• Specially Designed For Glass Doors

SPECIFICATION

Product Dimension

Front Body : 75(W) X 175(H) X 20(D)mm
Back Body : 65(W) X 165(H) X 35(D)mm

Applicable Door Thickness

12 mm

Applicable Door Material

Glass Doors

Authentication Method

Pin Number & RFID Card

Power Supply

DC 6V LR6 1.5V AA Sized Alkaline Battery 4EA

Emergency Battery

DC 9V Alkaline Battery (Sold Separately)

Fire Sensor

72 Degrees +/- 5 Degrees (Testing Room)
62 Degrees +/- 5 Degrees (Normal Room)

Material

Front Body : AL, ZN, PC
Back Body : AL, ZN, ABS

Accessories

2 RFID Epoxy / 2 RFID Sticker

Registrations

1 Pin Number (Normal)
1 Guest Pin Number
