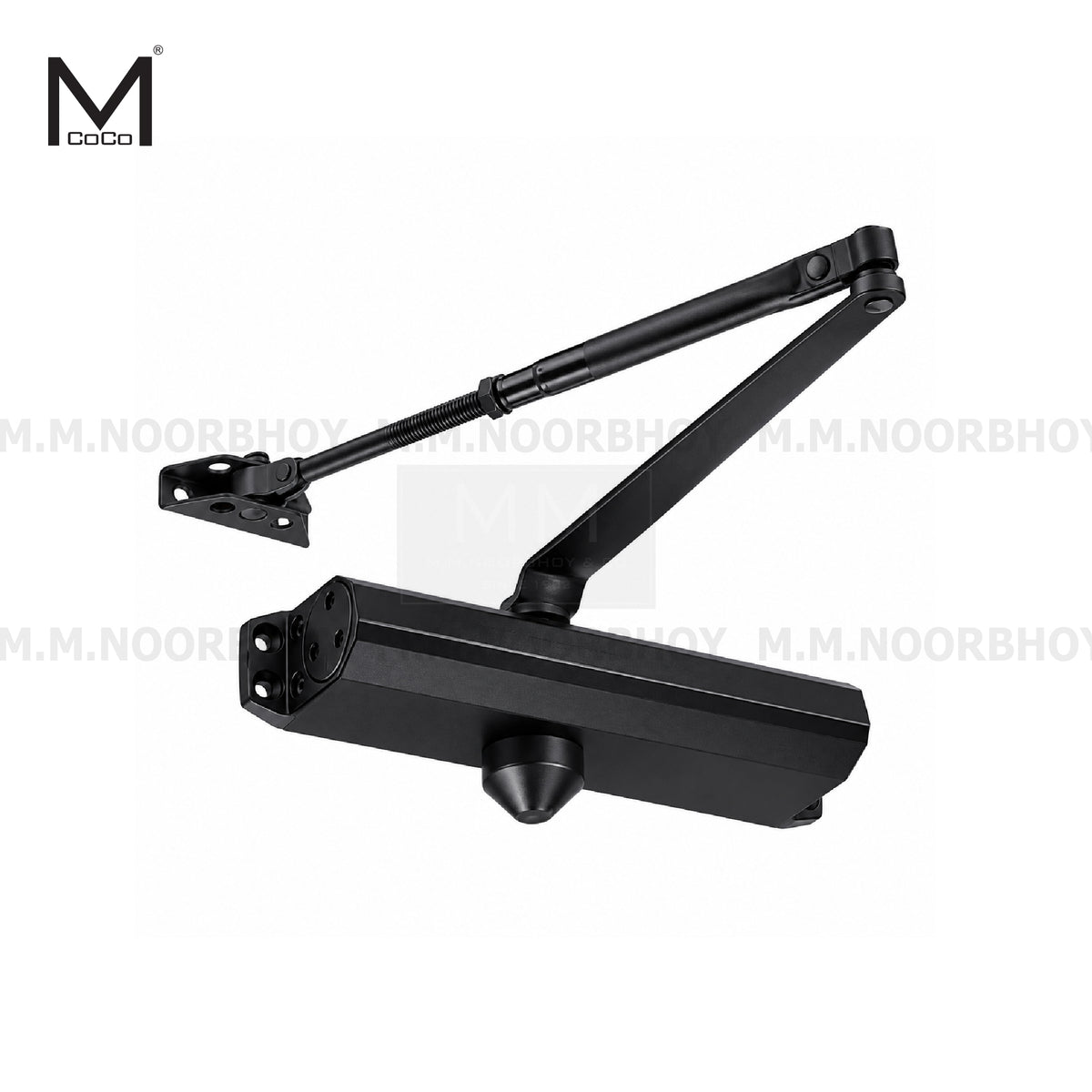

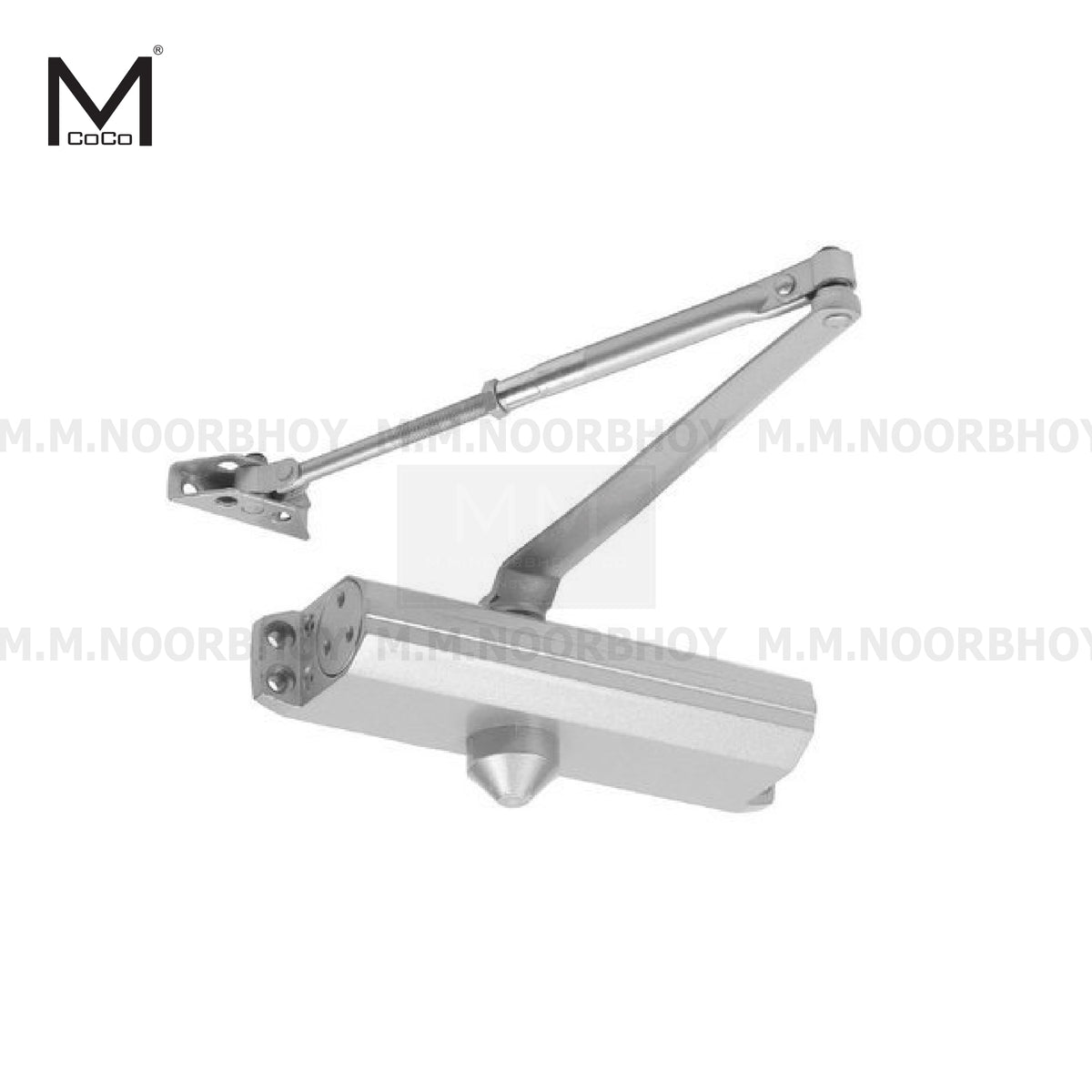

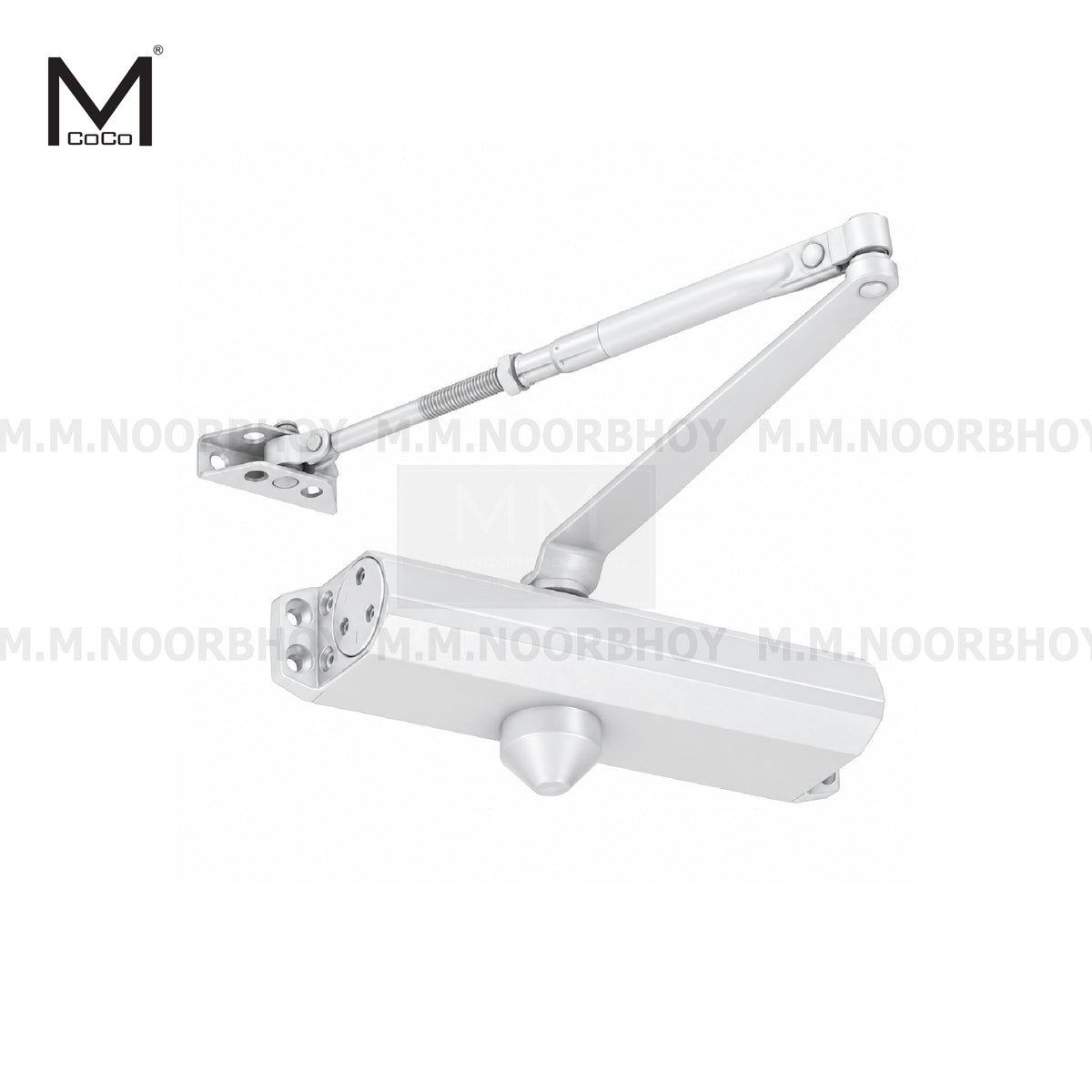

Mcoco Door Closer Non Hold Open, Weight Capacity 35 to 65Kg Black, Silver & White Colour - M061

M061 Door Closer

The M061 Door Closer is a reliable and durable solution for controlled door closing in both interior and exterior applications. Designed with a compact hexagonal body and a rack and pinion mechanism, it provides smooth and consistent closing performance for doors weighing 40–65 kg.

With a maximum opening angle of up to 180° and a durability rating of up to 500,000 cycles, the M061 is suitable for a wide range of residential, commercial and architectural applications. Its ADC12 aluminium alloy body offers a strong and lightweight construction, while the low-temperature NBR O-rings and ultra low temperature hydraulic oil support reliable operation across temperatures from -40°C to 50°C.

Key Features

• Suitable for doors weighing 40–65 kg

• Recommended door width: 830–950 mm

• Operating temperature: -40°C to 50°C

• Maximum opening angle: Up to 180°

• Rack and pinion mechanism

• Standard steel arm

• Compact hexagonal body design

• Suitable for interior and exterior doors

• Durability: Up to 500,000 cycles

• Closing and latching adjustment

• Parallel arm installation supported with required bracket

• Hold-open option available

• Mounting screws included

• Door closer body weight: 831 g

• Body material: ADC12 aluminium alloy

• Gear bearing type: Bushing

• Low-temperature NBR O-rings

• L-HS ultra-low-temperature hydraulic oil

• Transmission gear shaft: 20CrMnTi

• Piston: 20CrMnTi

• Spring: 60Si2MnA

• Available in multiple finishes

Dimensions

• Body Size: 170 × 44 × 62.5 mm

• Installation Hole Spacing: 162 × 19 mm

• Door Width: 830–950 mm

• Door Weight: 40–65 kg

The M061 combines durability, controlled closing and compact design, making it a practical choice for reliable door control across a variety of architectural applications.
