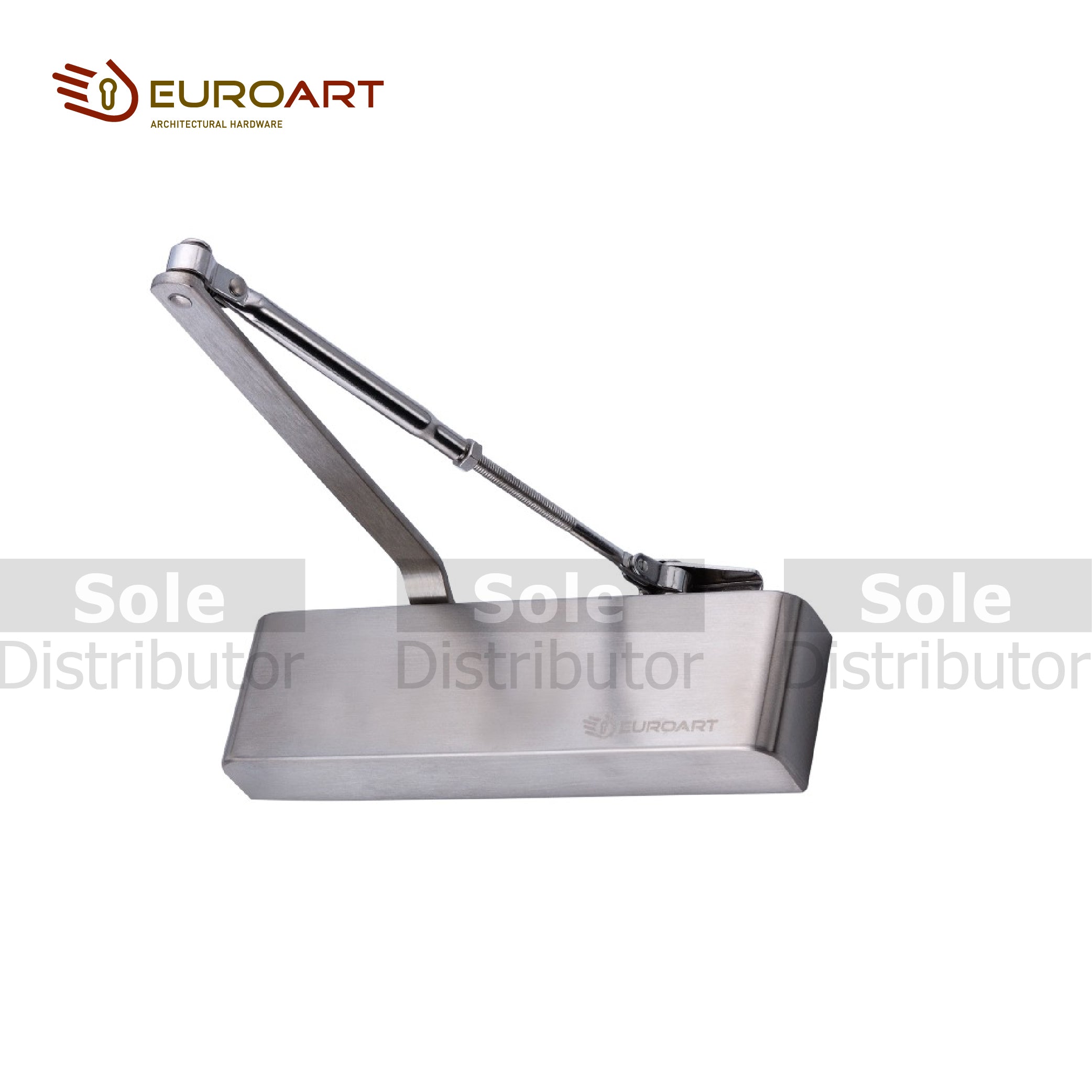

DOOR CLOSER - DC 5024

M. M. Noorbhoy & Co (Pvt) Ltd

  • Rs 16,735.31
Tax included.

Only 3 left!

Standard Arm Closers

Features

  • Coat & Arm Finishes: SSS, PSS, PVD, AB
  • Slimline compact design
  • Quick and easy to install
  • Non-handed unit
  • Outstanding value for money
  • Constant closing action virtually unaffected by temperature fluctuations
  • Reliable closing with adjustable latching action
  • Hold open arm available
  • Supplied with parallel arm bracket
  • Suitable for 120min fire-rated timber and 240min metal doors
  • Tested to Grade 8: 500,000 cycles.
Product specification
Power size (adjustable by position)
EN2 (up to 850mm/45kg) Yes
EN3 (up to 950mm/60kg) Yes
EN4 (up to 1100mm/80kg) Yes
Mechanism Rack and pinion
Adjustable closing speed Yes
Adjustable latch action Yes
Adjustable backcheck (CE in Fig 66) Yes
Maximum door width (mm) 1100
Maximum door weight (kg) 80
Opening angle 180°
Tested to BS EN 1154: 1997 Yes
CE marked Yes
DDA (min door width 936mm) Fig 1
DDA (min door width 753mm) Fig 66
LH and RH doors - universal application Yes
Fire-rated (BS EN 1634-1: 2000) Yes


CATALOG

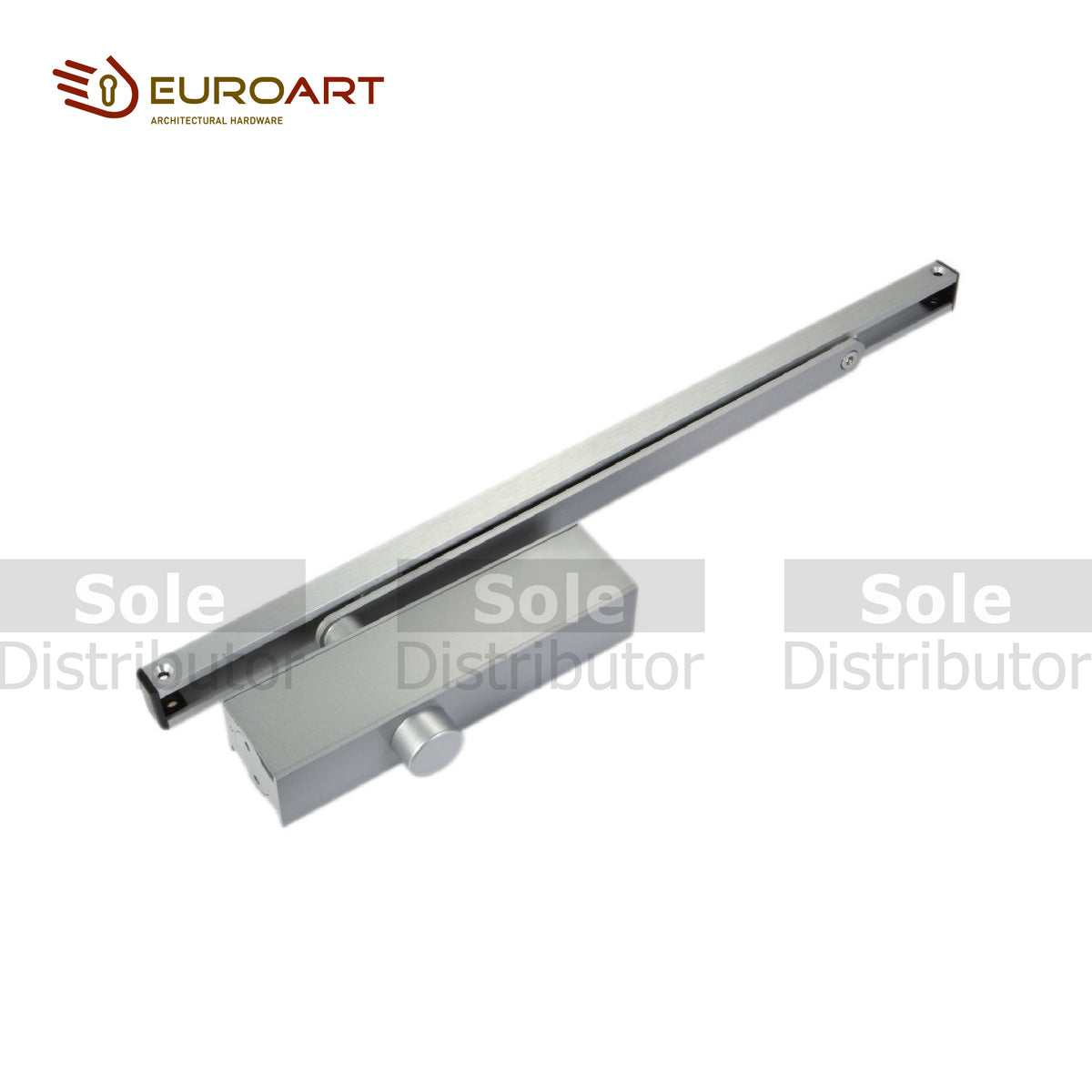

Door Closers with Sliding Arm and Channel

Features

  • Closer size EN3
  • Suitable for door weight 60kg & 950mm wide
  • Available with stainless steel cover
  • Hold open unit available
