ASSA ABLOY Floor Spring , Size EN3 , With Out Hold Open , Satin Stainless Steel Finish- DC450-EN3-H090+AC619
Regular price
Rs 38,240.00 LKR
inc. VAT
Product Weight
Couldn't load pickup availability
Dimensional Data Not Binding
Interested? Share on Social Media!
Be the first to know

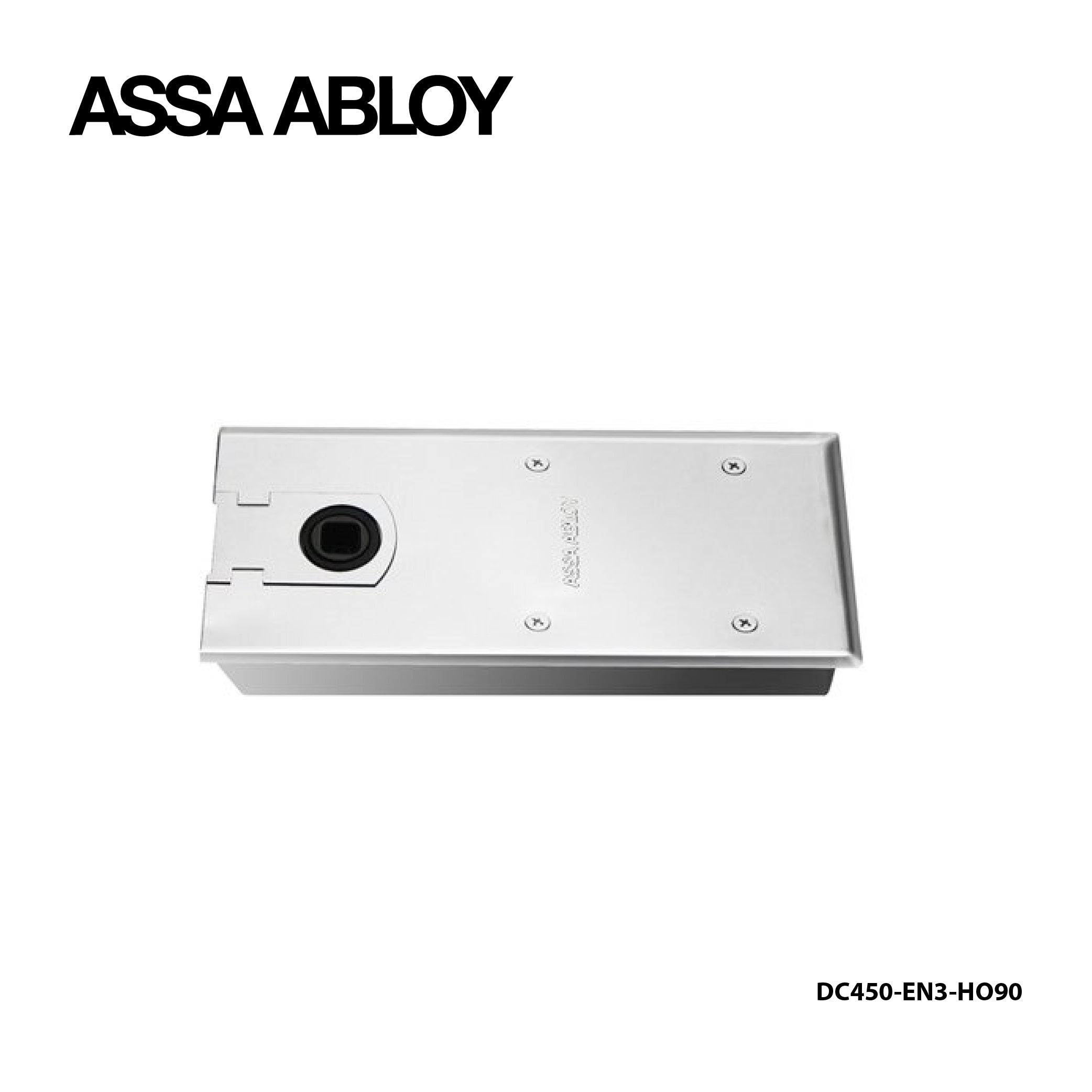

ASSA ABLOY DC450:
- Floor spring with fixed closing force for very thin slabs
- In compliance with EN1154, size EN3/EN4
- Suitable for fire and smoke protection doors
- For single and double-action doors up to 120kg

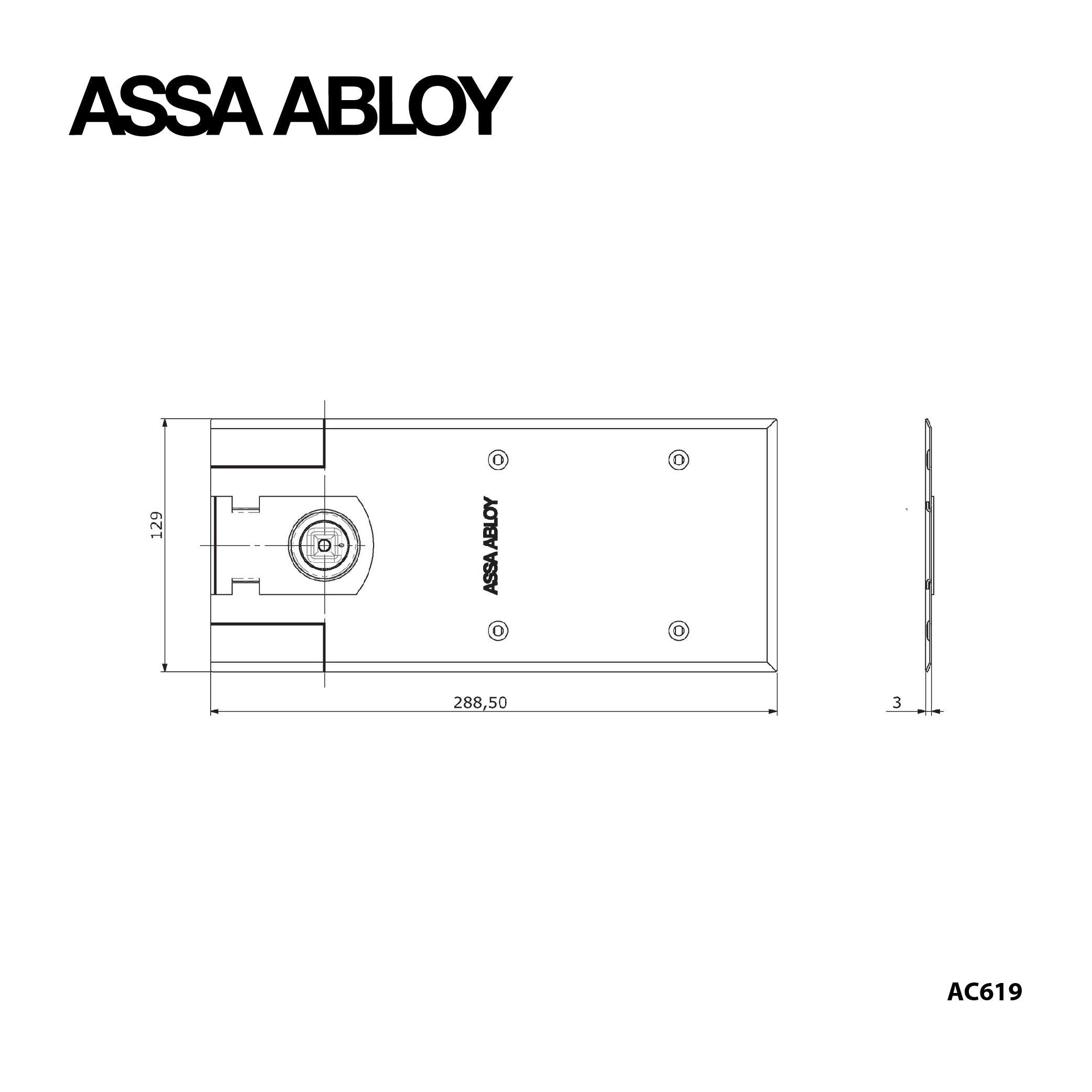

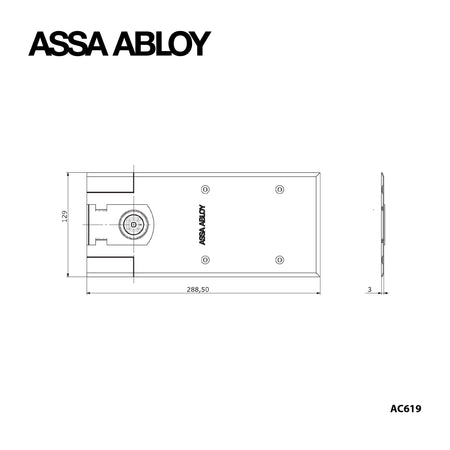

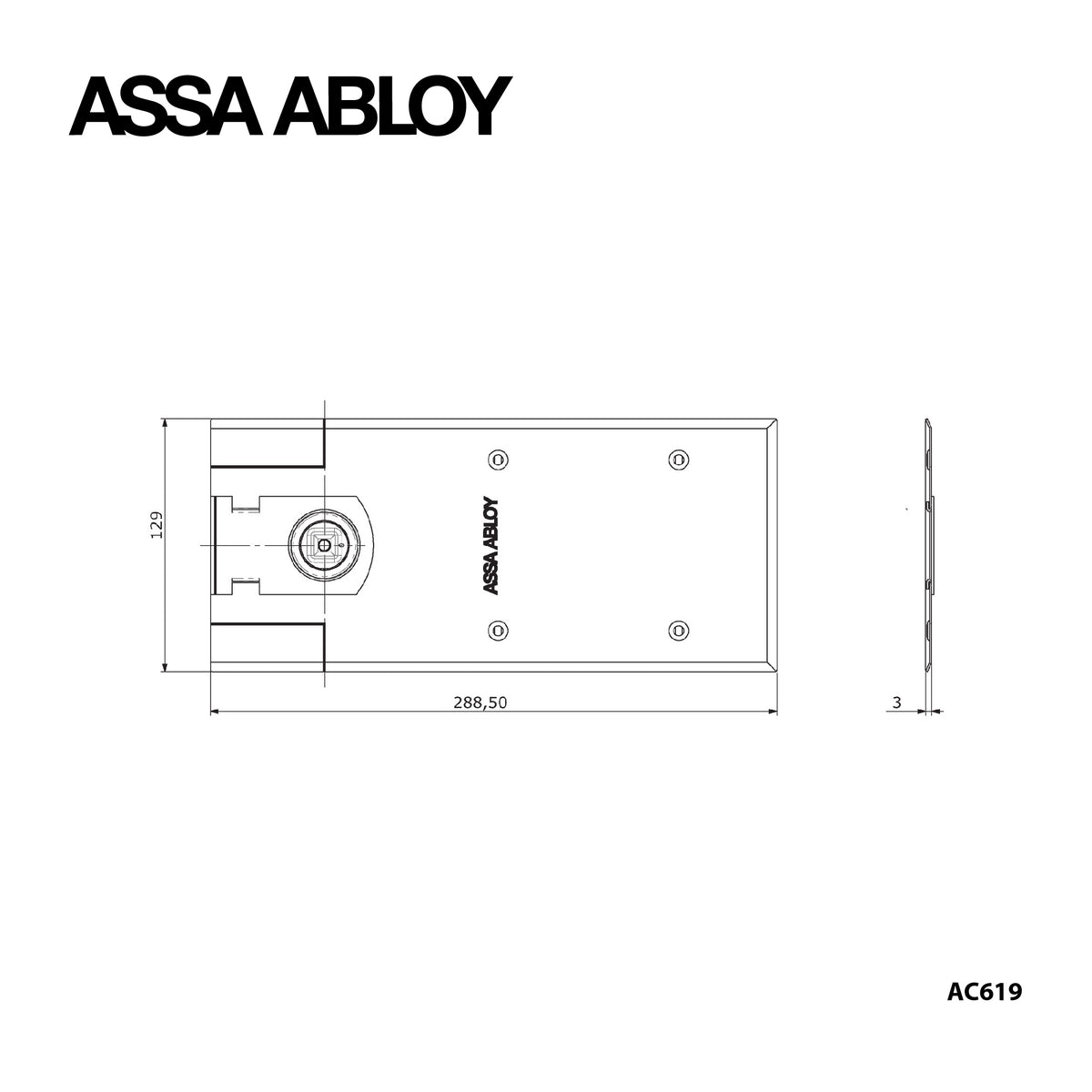

AC619
Technical details
| Fix closing force | EN3/EN4 |
| Door width up to | 950mm/1100mm |
| Door weight up to | 120kg |
| Max. opening angle | 130° |
| Closing speed | Variable between 130°-15° |
| Latching speed | Variable between 15°- 0° |
| Back-check | No |
| Weight | 3.8kg |
| Height | 40 mm |
| Length | 277 mm |
| Width | 108 mm |
| Body adjustment within cement box | Vertical 2mm, side 6mm, front 7mm, angular 4° |
| DIN-direction | Left/Right handed or double-action |
| Hold-open mode | 90°/105°/Non hold-open |
| In compliance with | EN1154 |
